01 - Blower Plenum
02 - Burner Box Assembly
03 - Escutcheon Assembly

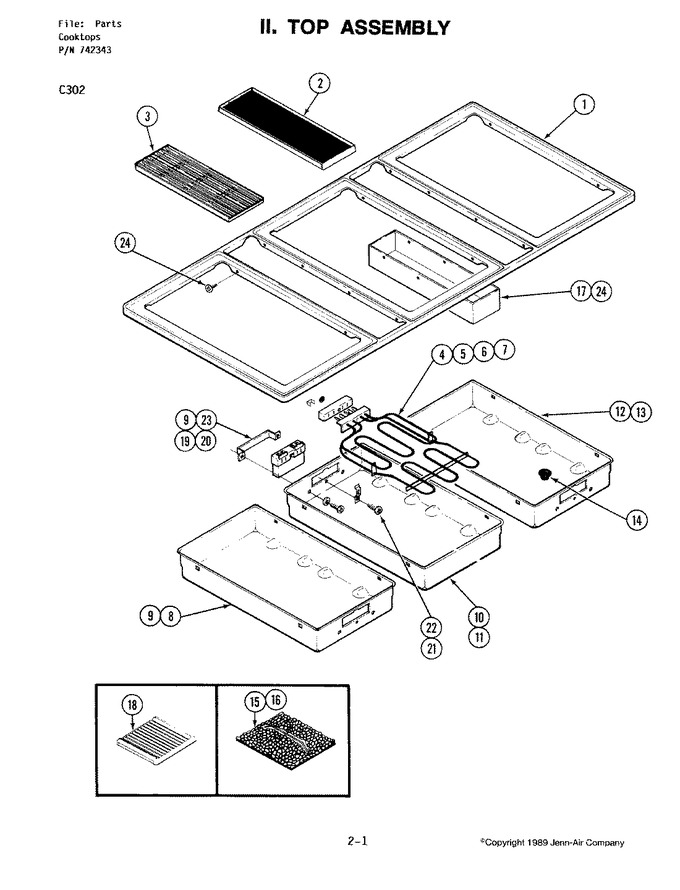

04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-06343A | Top (Replaces: 701852) | 1 |
|
$ 161.49 | ||||
| 2 | Y700789 | Block, Chopping | 1 |
|
- | ||||
| 3 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 4 | WP5700M426-60 | Element, Grill (Replaces: Y700452) | 1 |
|
$ 382.26 | ||||
| 5 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 6 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 7 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 8 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 8 | Y712431 | Kit, Wire | 1 |
|
- | ||||
| 8 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 8 | Y712197 | Wire, Brown | 1 |
|
- | ||||
| 8 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 8 | Y712030 | Wire, Blue | 1 |
|
- | ||||
| 9 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 10 | Y712199 | Wire, Brown | 1 |
|
- | ||||
| 10 | WP5708M007-60 | Wire, Yellow (Replaces: Y712201) | 1 |
|
$ 117.23 | ||||
| 10 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) | 1 |
|
$ 87.19 | ||||
| 10 | WP5708M005-60 | Contact/wire Assy. (blu-lt) (Replaces: Y712029) | 1 |
|
$ 86.45 | ||||
| 10 | Y701956 | Pan, Grill (rt) | 1 |
|
- | ||||
| 10 | Y712438 | Kit, Wire | 1 |
|
$ 137.49 | ||||
| 11 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 12 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 12 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 12 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 12 | Y712439 | Wire, Brown | 1 |
|
- | ||||
| 12 | Y712437 | Kit-wire | 1 |
|
- | ||||
| 13 | WPY702434 | Receptacle (Replaces: 702783) | 1 |
|
Immediately | $ 96.61 | |||
| 14 | Y702825 | Plug, Rubber | 1 |
|
- | ||||
| 15 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 16 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 17 | 701991 | Box, Utensil | 1 |
|
- | ||||
| 18 | 707886 | Grate | 1 |
|
- | ||||
| 19 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 20 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 21 | Y707664 | Washer | 1 |
|
- | ||||
| 22 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 23 | Y702698 | Bracket | 1 |
|
- | ||||
| 24 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 |
