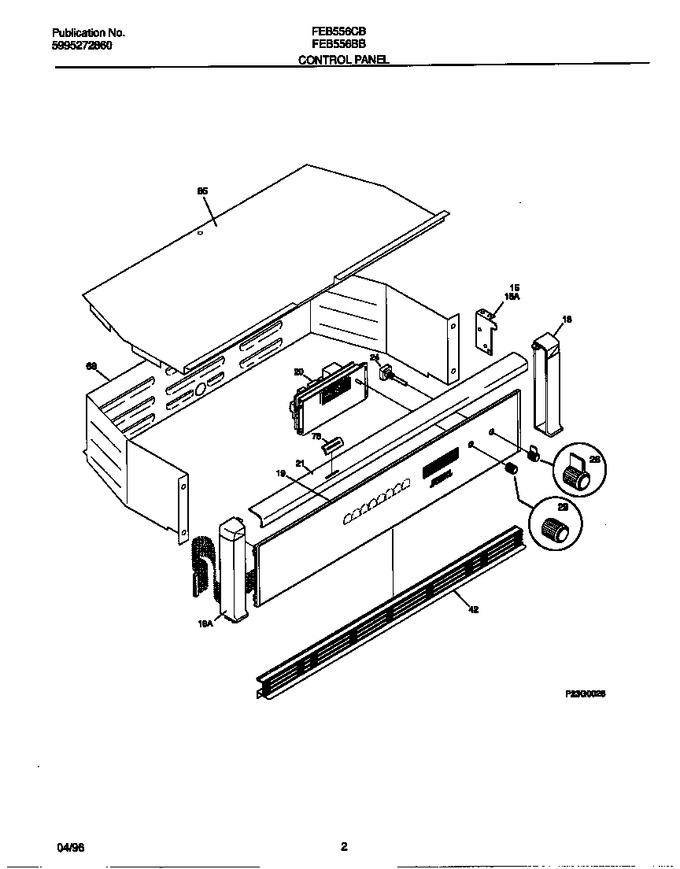

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311225		End Cap, Almond, Rh		Appelez-nous	-
18	5303311226		End Cap, Almond, Lh		Appelez-nous	-
19	5303302405		Panel-control, Almond		Appelez-nous	-
20	5303307401		Clock/timer, Eoc		Appelez-nous	-
21	5303317307		Screw, Top Trim, 6-32 X 3/8, Almond, (2) (not Illustrate		Appelez-nous	-
21	5303302392		Trim-backguard, Almond, Top		Appelez-nous	-
28	5303302402		Knob-clock/timer, Almond		Appelez-nous	-
29	5303302399		Knob-clock, Almond		Appelez-nous	-
42	5303316650		Trim-vent,almond		Appelez-nous	-
65	5303302390		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
78	5303302395		Cover, Oven Vent, Almond		Appelez-nous	-
*00120	5303302412		Shield-backsplash		Appelez-nous	-
24A	3202654		Switch-light/lamp		Appelez-nous	-
24B	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2) (not Illustrated)		Appelez-nous	-
