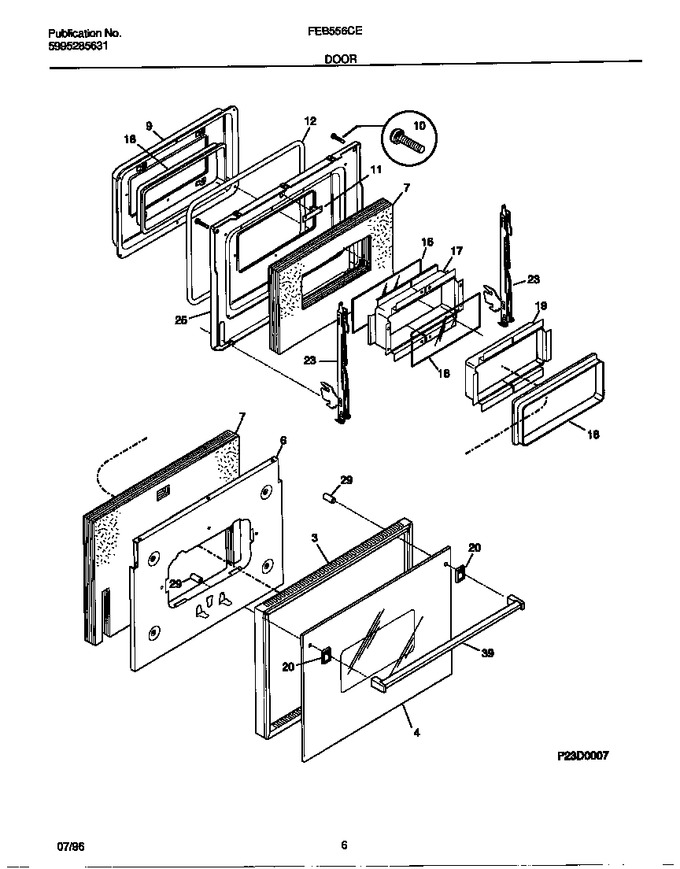

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026100		Trim-oven Door, White		Appelez-nous	-
4	5303302707		Glass-oven Door, White, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303299481		Screw-handle (2)		Appelez-nous	-
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	5303210008		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	5303210006		Collar-glass Mtg, Upper Oven		Appelez-nous	-
20	5303300173		Spacer-handle,white		Appelez-nous	-
25	318048300		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	5303302705		Handle-door, White, Oven		Appelez-nous	-
*26448	3202113		Button, Plug		Appelez-nous	-
*26449	5303316982		Tape, Seal, (3)		Appelez-nous	-
*26450	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*26451	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
23A	316009400		Hinge-oven Door		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
