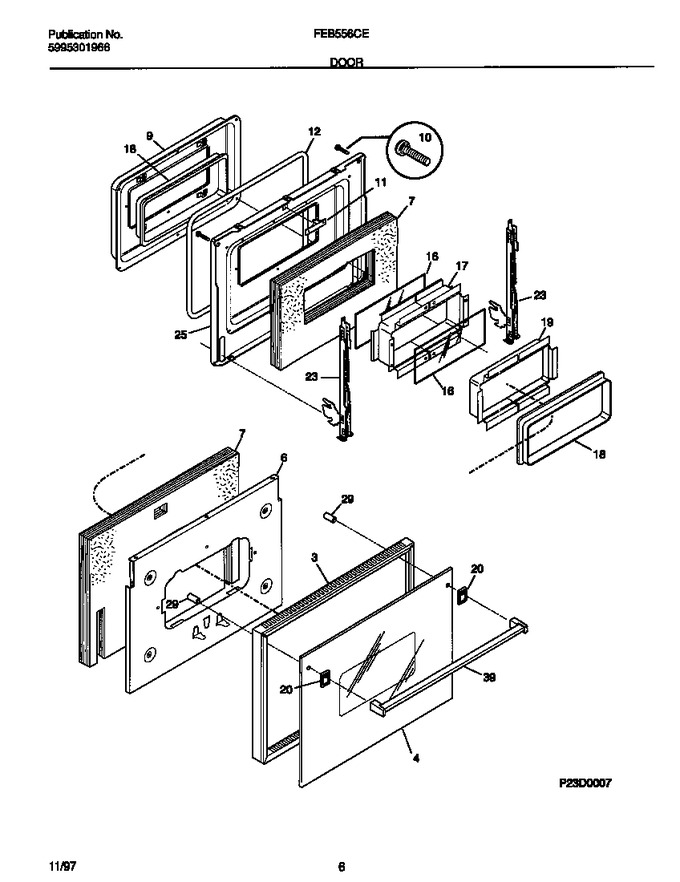

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026101		Trim-oven Door, Almond		Appelez-nous	-
4	5303302708		Glass-oven Door,almond ,outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014302		Spacer,handle ,almond ,(2)		Appelez-nous	-
23	318074100		Hinge, Oven Door, (2)		Appelez-nous	-
25	318048300		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	316091105		Handle-door,almond ,oven		Appelez-nous	-
*28532	3202113		Button, Plug		Appelez-nous	-
*28533	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*28534	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*28535	5303316982		Tape, Seal, (3)		Appelez-nous	-
