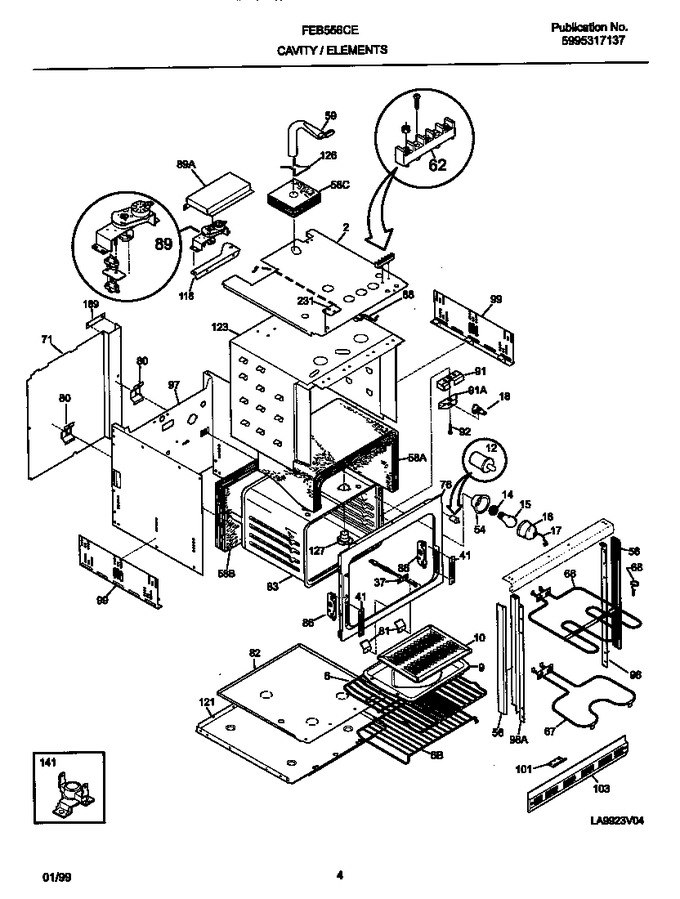

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303301263 | Shield-oven Top |
|
- | |||||
| 6 | 5303299366 | Rack-oven |
|
- | |||||
| 6 | 5303305676 | Shelf-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket - Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer-lens |
|
- | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111201) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Retainer Door |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 5303302712 | Trim-bodyside, Almond |
|
- | |||||
| 58 | 5304409957 | Insulation-wrapper |
|
- | |||||
| 58 | 3019048 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303311220 | Insulation,oven Vent |
|
- | |||||
| 59 | 318072507 | Tube,oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 67 | 5303323865 | Element-bake |
|
- | |||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 71 | 5303305037 | Shield-wire |
|
- | |||||
| 76 | 318056135 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 82 | 5303305035 | Shield-insulation Bottom |
|
- | |||||
| 83 | 318089508 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 3016241 | Rod-latch |
|
- | |||||
| 89 | 3016296 | Cover-motor |
|
- | |||||
| 89 | 318095800 | Motor-latch/lock |
|
- | |||||
| 91 | 3051647 | Housing, Latch |
|
- | |||||
| 91 | 3019069 | Housing-latch |
|
- | |||||
| 92 | 5308012004 | Stud - Axle |
|
$ 8.29 | |||||
| 97 | 318066602 | Wrapper-back Side |
|
- | |||||
| 98 | 318029323 | Trim-side Inner Lh |
|
- | |||||
| 98 | 318029322 | Trim-side Inner Rh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 101 | 318039513 | Bracket-trim |
|
- | |||||
| 103 | 318028712 | Trim-base, Almond |
|
- | |||||
| 118 | 5303308461 | Bracket-latch |
|
- | |||||
| 121 | 318145001 | Wrapper-base |
|
- | |||||
| 123 | 318071431 | Shield-insulation Top & Sides |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| 189 | 318042500 | Retainer Plate |
|
- | |||||
| 231 | 5303300421 | Cover-capillary |
|
- | |||||
| *82602 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *82603 | 5303304015 | Washer, Padded |
|
- | |||||
| *82604 | 3201881 | Lockwasher |
|
- | |||||
| *82605 | 3018802 | Clip-cable |
|
- | |||||
| *82606 | 3051070 | Screw,10-24 X 7/16 |
|
- | |||||
| *82607 | 318078510 | Box & Wire Assy |
|
- | |||||
| *82609 | 5303302745 | Screw, 10-16 X 1 1/8, Black |
|
$ 8.35 | |||||
| *82610 | 5303325188 | Screw, 10-16 X 1 1/4, Almond |
|
- |
