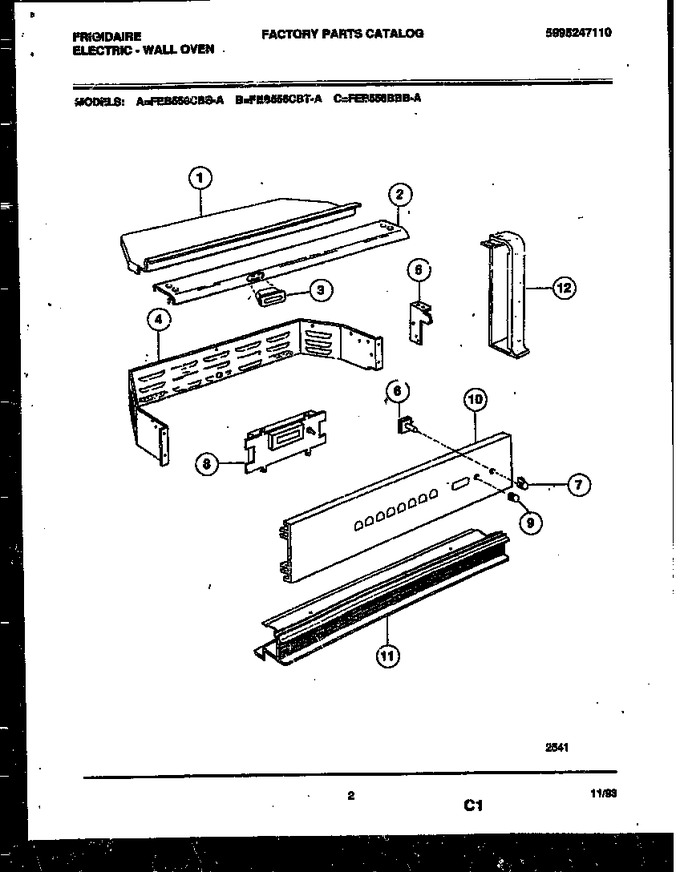

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302390 | Cover-control Housing |
|
- | |||||
| 2 | 5303302392 | Trim-top |
|
- | |||||
| 3 | 5303302395 | Cover-oven Vent |
|
- | |||||
| 4 | 5303302397 | Back-housing Control |
|
- | |||||
| 5 | 5303302286 | Bracket-end-rh |
|
- | |||||
| 6 | 3202654 | Switch-light |
|
- | |||||
| 7 | 5303302399 | Light Switch Knob |
|
- | |||||
| 8 | 5303272457 | Timer-eoc |
|
- | |||||
| 9 | 5303302402 | Timer-knob |
|
- | |||||
| 10 | 5303302405 | Control-panel |
|
- | |||||
| 11 | 5303302408 | Trim-center Vent |
|
- | |||||
| 12 | 5303302410 | End Backsplash-rh |
|
- | |||||
| *89184 | 5304409888 | Main-terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| *89184 | 5303210643 | Bracket-light Switch |
|
- | |||||
| 12A | 5303302411 | End Backsplash-lh |
|
- | |||||
| 5A | 5303302287 | Bracket-end-lh |
|
- |
