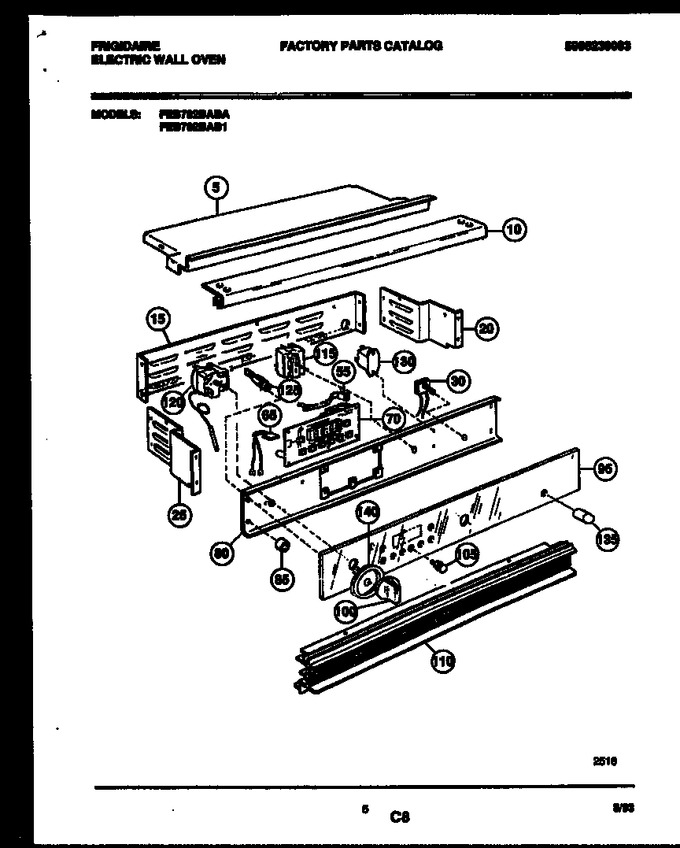

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303299528 | Cover-control Housing |
|
- | |||||
| 10 | 5303299530 | Top Trim |
|
- | |||||
| 15 | 5303299531 | Back Housing Control |
|
- | |||||
| 20 | 5303299532 | End Hsg Control-rh |
|
- | |||||
| 25 | 5303299533 | End Hsg Control-lh |
|
- | |||||
| 30 | 5303299469 | Light Switch |
|
- | |||||
| 55 | 5303299535 | Crossover Lead |
|
- | |||||
| 65 | 5303299536 | Crossover Lead |
|
- | |||||
| 70 | 5303299537 | Timer |
|
- | |||||
| 80 | 5303299538 | Switch-panel |
|
- | |||||
| 85 | 3202093 | Bumper (4) |
|
- | |||||
| 95 | 5303299540 | Glass |
|
- | |||||
| 100 | 5303297395 | Knob-black (2) |
|
- | |||||
| 105 | 5303299543 | Knob-black (8) |
|
- | |||||
| 110 | 5303299545 | Vent Trim-black |
|
- | |||||
| 115 | 5303299471 | Selector |
|
- | |||||
| 120 | 5303299472 | Oven Control |
|
$ 310.91 | |||||
| 125 | 5303299473 | Pilot Light |
|
- | |||||
| 130 | 5303299546 | Relay |
|
- | |||||
| 135 | 5303299474 | Knob-light Switch |
|
- | |||||
| 140 | 5303299475 | Escutcheon (2) |
|
- | |||||
| *83045 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 |
