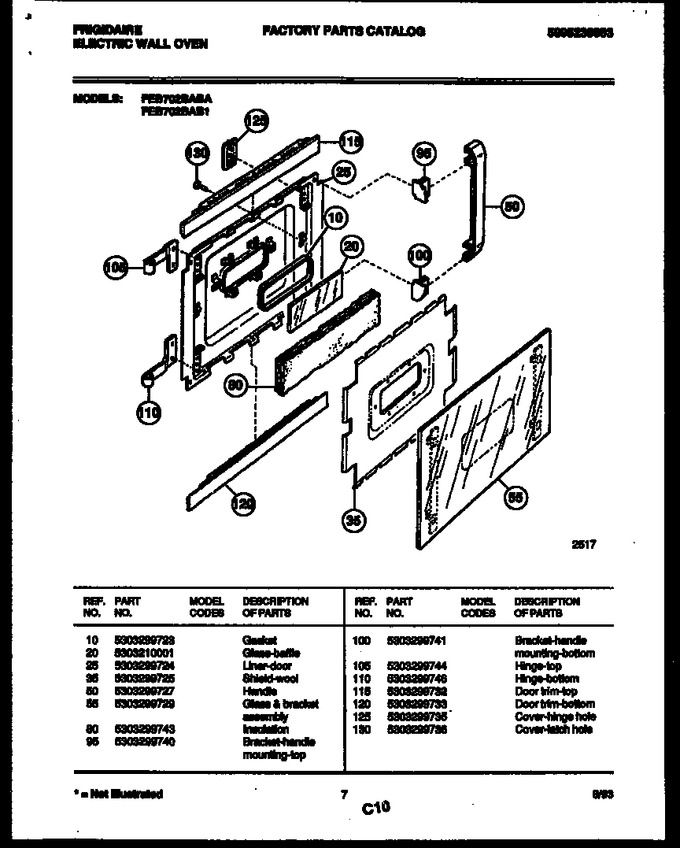

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5303299723 | Gasket |
|
- | |||||
| 20 | 5303210001 | Glass-baffle |
|
- | |||||
| 25 | 5303299724 | Liner-door |
|
- | |||||
| 35 | 5303299725 | Shield-wool |
|
- | |||||
| 50 | 5303299727 | Handle |
|
- | |||||
| 55 | 5303299729 | Glass & Bracket Assembly |
|
- | |||||
| 80 | 5303299743 | Insulation |
|
- | |||||
| 95 | 5303299740 | Bracket-handle Mounting-top |
|
$ 68.88 | |||||
| 100 | 5303299741 | Bracket-handle Mounting-bottom |
|
$ 143.80 | |||||
| 105 | 5303299744 | Hinge-top |
|
- | |||||
| 110 | 5303299746 | Hinge-bottom |
|
- | |||||
| 115 | 5303299732 | Door Trim-top |
|
$ 92.40 | |||||
| 120 | 5303299733 | Door Trim-bottom |
|
$ 35.33 | |||||
| 125 | 5303299735 | Cover-hinge Hole |
|
- | |||||
| 130 | 5303299736 | Cover-latch Hole |
|
- |
