New Model Search:

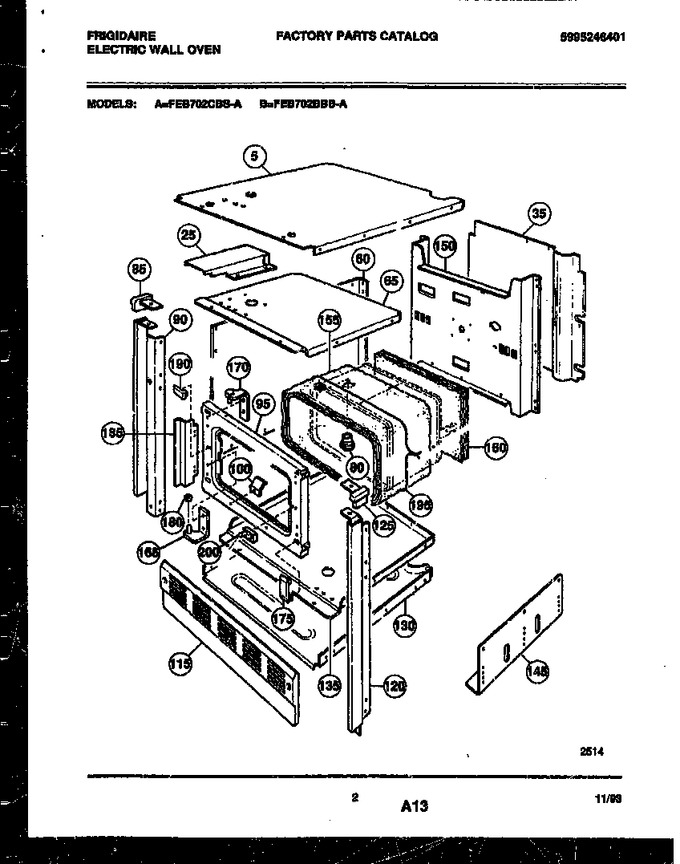

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303299665 | Wrapper-top |
|
- | |||||
| 25 | 5303299666 | Air Duct |
|
- | |||||
| 35 | 5303299667 | Cover-wire |
|
- | |||||
| 60 | 5303300980 | Wrapper |
|
- | |||||
| 65 | 5303299670 | Shield-insulation |
|
- | |||||
| 80 | 5303206498 | Vent-tube Assembly |
|
- | |||||
| 85 | 5303299673 | Trim Cap |
|
- | |||||
| 90 | 5303299677 | Trim-side-inner |
|
- | |||||
| 95 | 5303299679 | Frame-oven |
|
- | |||||
| 100 | 3201632 | Oven Support |
|
- | |||||
| 115 | 5303299253 | Trim-base |
|
- | |||||
| 120 | 5303299678 | Trim-side-inner |
|
- | |||||
| 125 | 5303299674 | Trim Cap |
|
- | |||||
| 130 | 5303299683 | Wrapper-bottom |
|
- | |||||
| 135 | 5303299685 | Shield Insulation |
|
- | |||||
| 145 | 5303299686 | Support,adjustable |
|
- | |||||
| 155 | 5303302374 | Insulation |
|
- | |||||
| 160 | 5303299688 | Insulation |
|
- | |||||
| 165 | 5303299711 | Hinge Assembly |
|
- | |||||
| 170 | 5303299712 | Hinge Assembly |
|
- | |||||
| 175 | 5303299713 | Plug |
|
- | |||||
| 180 | 5303299716 | Washer |
|
- | |||||
| 190 | 5303299714 | Plug |
|
- | |||||
| 195 | 5303299689 | Wire-tie |
|
- | |||||
| 200 | 5303299715 | Strike-door |
|
- |
