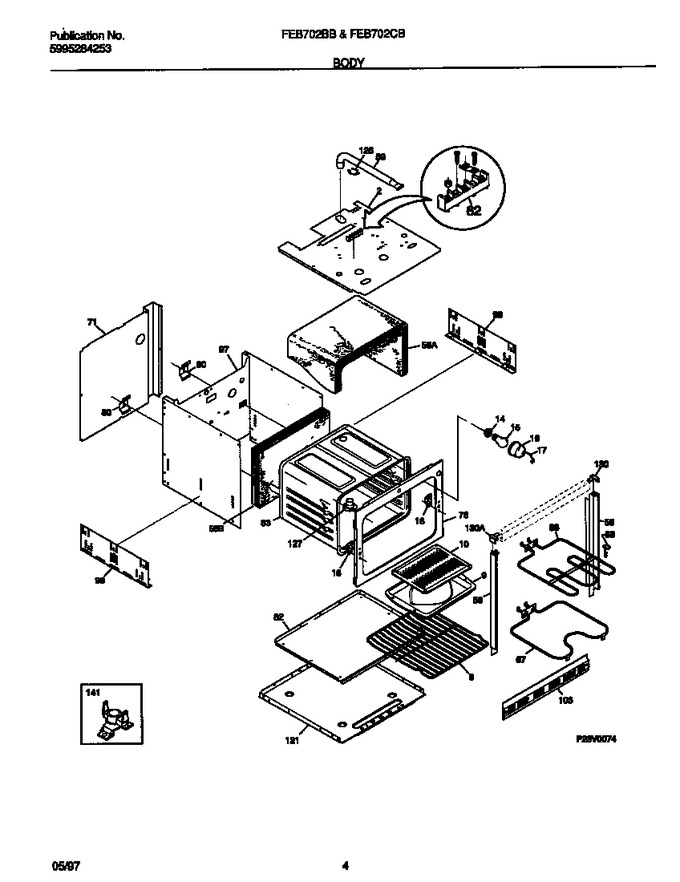

03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303316975 | Shield-oven Top |
|
- | |||||
| 6 | 5303299719 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Lamp-oven Light (Replaces: 5303299720) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass-oven Light Lens, Large/small, Oven (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens, Oven |
|
- | |||||
| 18 | 318090310 | Latch-door (Replaces: 318090300) |
|
Immediately | $ 44.61 | ||||
| 56 | 5303299677 | Trim-bodyside, Black, Rh |
|
- | |||||
| 56 | 5303299678 | Trim-bodyside, Black, Lh |
|
- | |||||
| 58 | 5303304702 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303299688 | Insulation, Oven Back |
|
- | |||||
| 59 | 5303299666 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 71 | 5303304701 | Shield-wire |
|
- | |||||
| 76 | 318056107 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 5303320490 | Liner-oven Assy |
|
- | |||||
| 97 | 5303300980 | Wrapper, Back & Sides |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 103 | 5303316773 | Trim-base, Black |
|
$ 80.22 | |||||
| 121 | 5303304700 | Wrapper-base |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 5303206498 | Adapter Assy |
|
- | |||||
| 130 | 5303299673 | End Cap-trim, Black, Lh |
|
- | |||||
| 130 | 5303299674 | End Cap-trim, Black, Rh |
|
- | |||||
| 141 | 5303299721 | Thermostat-safety |
|
- | |||||
| *54523 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| *54524 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 | |||||
| *54525 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *54526 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *54527 | 5303320492 | Washer, Flat |
|
- | |||||
| *54528 | 5303319292 | Box & Wires Assy |
|
- |
