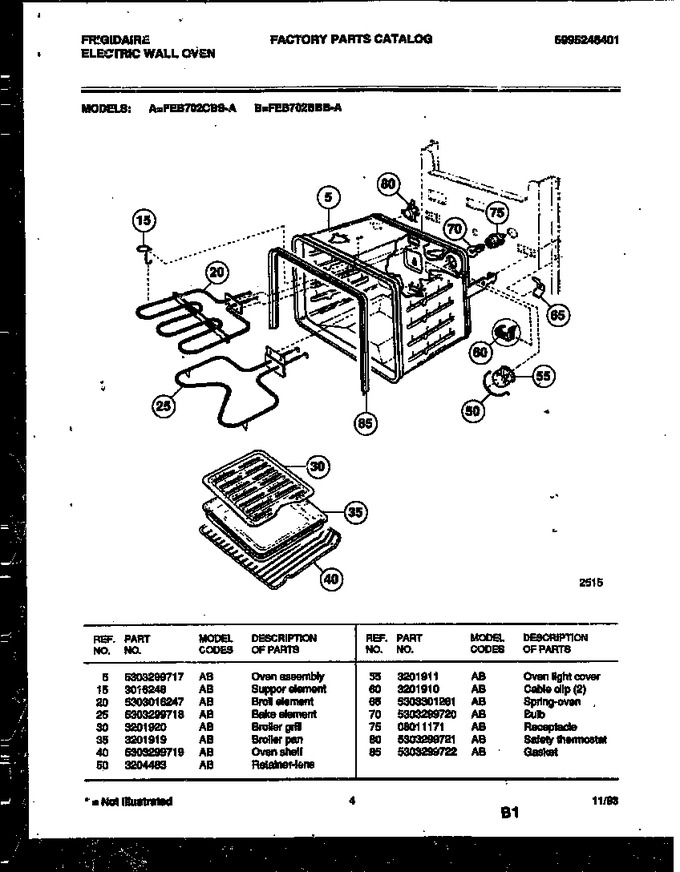

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303299717 | Oven Assembly |
|
- | |||||
| 15 | 3016248 | Support, Element |
|
- | |||||
| 20 | 5303016247 | Broil Element |
|
$ 223.97 | |||||
| 25 | 318255100 | Bake Element (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| 30 | 3201920 | Broiler Grill |
|
- | |||||
| 35 | 3201919 | Broiler Pan |
|
- | |||||
| 40 | 5303299719 | Oven Shelf |
|
- | |||||
| 50 | 3204483 | Retainer-lens |
|
- | |||||
| 55 | 5304524341 | Oven Light Cover (Replaces: 3201911) |
|
Immediately | $ 15.61 | ||||
| 60 | 3201910 | Cable Clip (2) |
|
- | |||||
| 65 | 5303301261 | Spring,oven |
|
- | |||||
| 70 | 40A15 | Bulb (Replaces: 5303299720) |
|
Immediately | $ 1.98 | ||||
| 75 | 08011171 | Receptacle |
|
- | |||||
| 80 | 5303299721 | Safety Thermostat |
|
- | |||||
| 85 | 5303299722 | Gasket |
|
- |
