SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

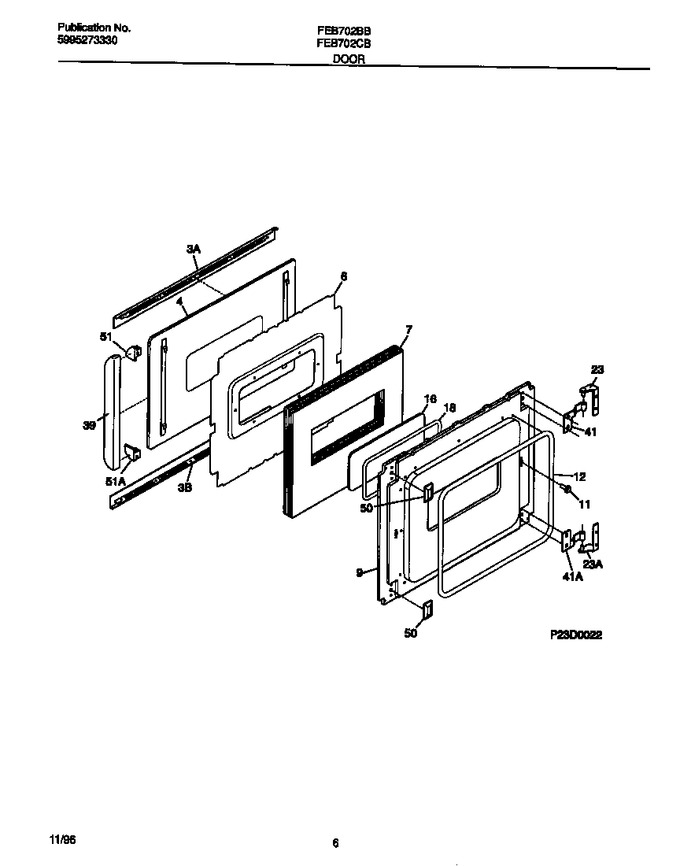

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303299731		Trim-oven Door, White, Lower		Appelez-nous	-
3	5303299730		Trim-oven Door, White, Upper		Appelez-nous	-
4	5303299728		Glass-oven Door, White, Outer, Brackets Incl.		Appelez-nous	-
6	5303316954		Shield-insulation		Appelez-nous	-
7	5303302388		Insulation, Oven Door		Appelez-nous	-
9	5303299724		Liner-oven Door		Appelez-nous	-
11	5303299736		Cover-door Latch		Appelez-nous	-
12	5303299722		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
18	5303299723		Seal-rope		Appelez-nous	-
23	5303299712		Hinge-oven Door, Upper, Assy		Appelez-nous	-
39	5303299726		Handle-door, White, Oven		Appelez-nous	-
41	5303299744		Hinge-oven Door, Upper		Appelez-nous	-
41	5303299746		Hinge-oven Door, Lower		Appelez-nous	-
51	5303299739		Bracket, Handle Mtg, White, Lower				$ 172.57
51	5303299738		Bracket, Handle Mtg, White, Upper				$ 98.86
*28928	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*28929	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*28930	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*28931	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
23A	5303299711		Hinge-oven Door, Lower, Assy		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
50A	5303299714		Cover-hinge Cutout		Appelez-nous	-
50B	5303299735		Cover, Door Strike, Cutout		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
