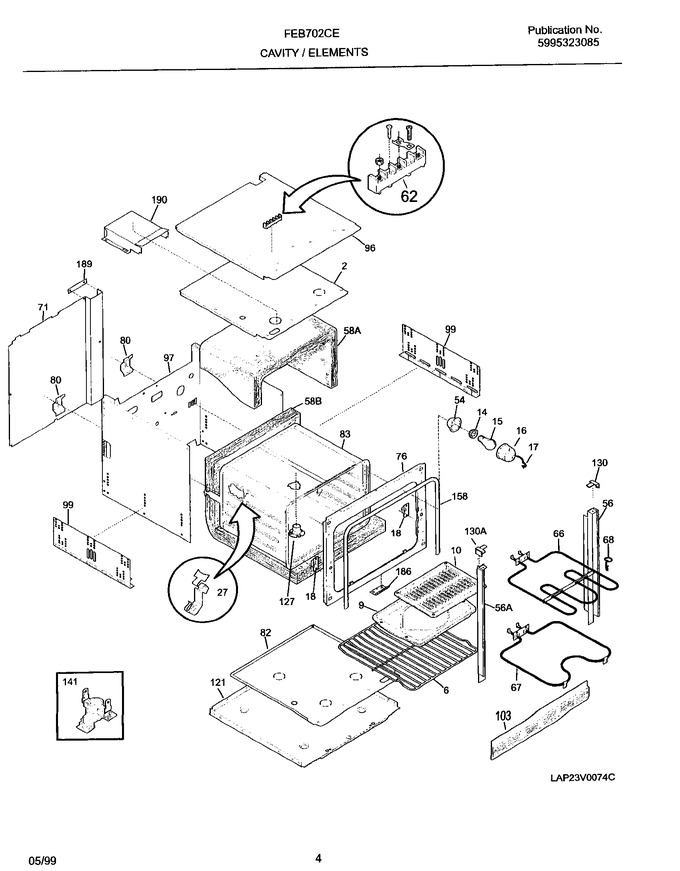

05 - Cavity/elements
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5303299719 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer-lens |
|
- | |||||
| 18 | 318090310 | Latch-door (Replaces: 318090300) |
|
Immediately | $ 44.61 | ||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318034102 | Trim-bodyside,black |
|
- | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 71 | 5303304701 | Shield-wire |
|
- | |||||
| 76 | 318056107 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 318089511 | Liner-oven Assy |
|
- | |||||
| 96 | 5303316975 | Shield-oven Top |
|
- | |||||
| 97 | 318066701 | Wrapper-back Side |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 103 | 5303316903 | Trim-base, White |
|
$ 133.46 | |||||
| 103 | 5303316773 | Trim-base, Black |
|
$ 80.22 | |||||
| 121 | 318145002 | Wrapper,base |
|
- | |||||
| 127 | 318072800 | Adapter Assy |
|
- | |||||
| 130 | 5303299674 | End Cap-trim, Black, Rh |
|
- | |||||
| 158 | 318053310 | Seal-oven Door |
|
- | |||||
| 186 | 318039501 | Bracket-trim |
|
- | |||||
| 189 | 318042500 | Retainer Plate |
|
- | |||||
| 190 | 5303299666 | Tube-oven Vent |
|
- | |||||
| 130A | 5303299673 | End Cap-trim, Black, Lh |
|
- | |||||
| 56A | 318034103 | Trim-bodyside,black |
|
- | |||||
| 58A | 5303304702 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 5303299688 | Insulation, Oven Back |
|
- | |||||
| F141 | 318003600 | Thermostat-safety |
|
$ 293.37 | |||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303319468 | Box & Wires Assy |
|
- | |||||
| NI | 5303302745 | Screw, 10-16 X 1 1/8, Black |
|
$ 8.35 | |||||
| NI | 5303320489 | Plug |
|
- | |||||
| NI | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 |
