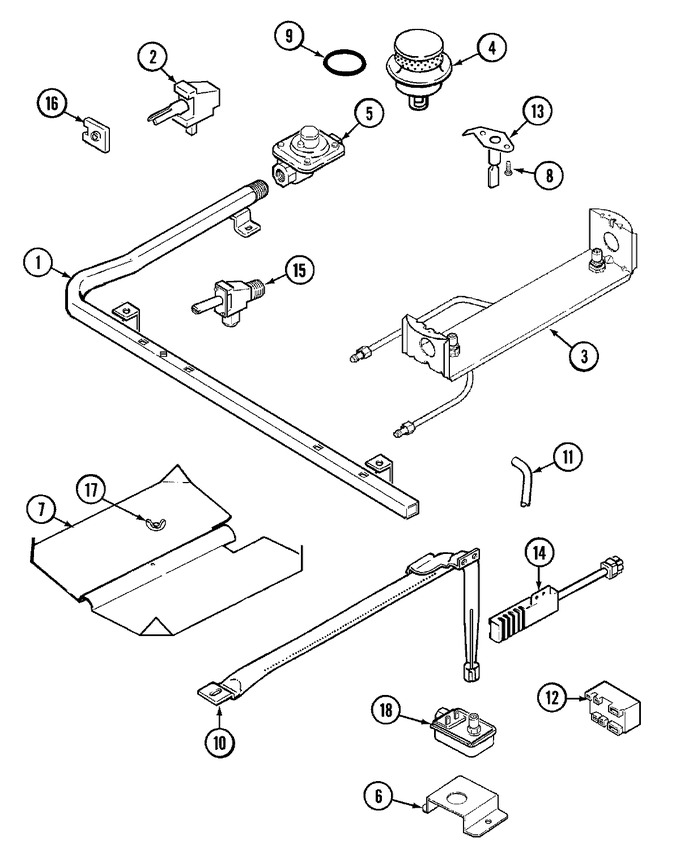

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009463		Pipe, Manifold (mueller)	19	Appelez-nous	-
1	74002531		Pipe, Manifold	10	Appelez-nous	-
1	74006416		Pipe, Manifold	12	Appelez-nous	-
2	74003925		Valve, Burner	12			$ 110.58
2	12002281		Kit, Valve & Screw (mueller)	19			$ 155.32
2	71003231		Screw, Valve	10	Appelez-nous	-
2	74002532		Valve, Burner	12	Appelez-nous	-
2	74003925		Valve, Burner	10			$ 110.58
2	74002532		Valve, Burner	10	Appelez-nous	-
2	74002433		Screw, Valve	10	Appelez-nous	-
3	WP5187M026-60		Orifice Fitting Assembly   (Replaces: 5187D026-60)	12		Immediately	$ 121.10
3	74002534		Fitting, Orifice (lt)	10	Appelez-nous	-
3	74002535		Fitting, Orifice (rt)	10	Appelez-nous	-
4	74003966		Burner, Sealed (taupe)	10			$ 31.82
5	7510P049-60		Regulator, Pressure	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74005051		Bracket, Oven Valve	10	Appelez-nous	-
7	74002393		Baffle, Oven Burner	10	Appelez-nous	-
8	WPW10253196		Screw   (Replaces: Y707113)	10			$ 3.76
9	74002745		Gasket, Burner	10	Appelez-nous	-
9	W10124350		Not Required Part Or See Note Gasket Not Sold Separately- Included In Sealed Burner Assembly-item No.4)	10	Appelez-nous	-
10	74002434		Burner, Oven	10			$ 94.06
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	1555251		Nut, Loxit (3/8``)	10	Appelez-nous	-
11	74002456		Tubing, Valve (3/8``)	10	Appelez-nous	-
12	8215557		Module, Spark (4+0)   (Replaces: 74004283)	10		Immediately	$ 124.99
13	74004053		Igniter, Top Burner	10		Immediately	$ 24.25
13	W10124350		Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner)	10	Appelez-nous	-
14	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
14	74007498		Igniter, Oven   (Replaces: 7432P075-60)	10		Immediately	$ 78.40
15	12002277		Kit, Valve & Screw (mueller)	19			$ 272.78
15	71003231		Screw, Valve	10	Appelez-nous	-
15	74002389		Valve, Shut Off	10	Appelez-nous	-
16	74002533		Switch, Igniter	10	Appelez-nous	-
16	WP7403P287-60		Switch, Igniter   (Replaces: 7403P287-60)	12			$ 130.75
16	WP7403P287-60		Switch, Igniter   (Replaces: 7403P287-60)	10			$ 130.75
16	74009464		Harness, Spark (4 Valve)	19	Appelez-nous	-
16	74002533		Switch, Igniter	12	Appelez-nous	-
17	7103P030-60		Nut, Wing	10			$ 6.37
18	74005329		Valve, Oven	10	Appelez-nous	-
18	74006281		Valve, Oven	11			$ 193.88
NI	74002363		Wires, Switch (blk/tn)	10	Appelez-nous	-
NI	74002457		Wires, Igniter (4-or)	10	Appelez-nous	-
NI	74004231		Wires, Module/switches	10	Appelez-nous	-
NI	W10124350		Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit)	10	Appelez-nous	-
