SELECT A DIAGRAM

01 - Cover

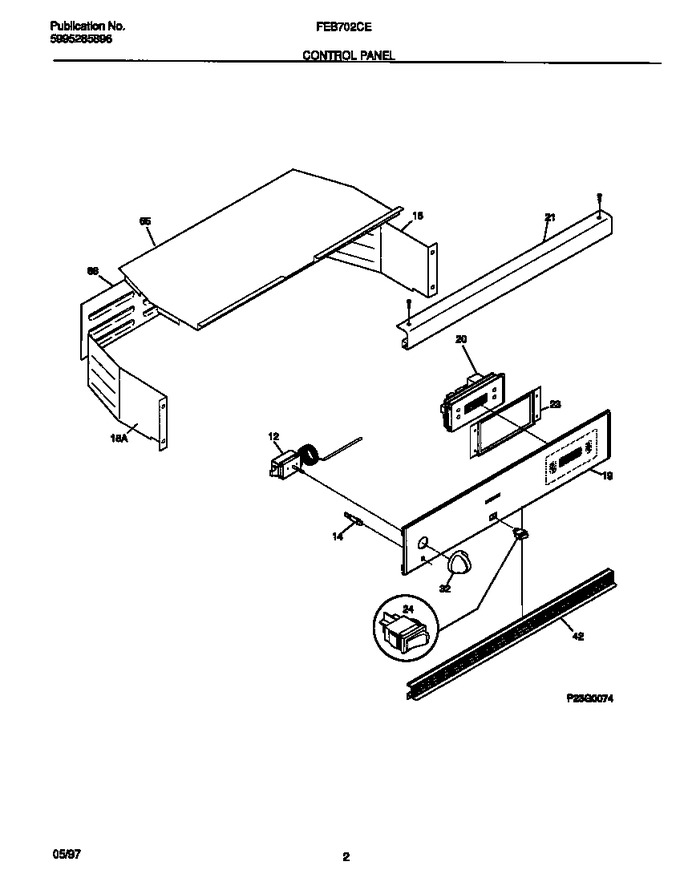

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058300		Thermostat-oven		Appelez-nous	-
14	5303320424		Light/lamp, Indicator, (3)		Appelez-nous	-
18	5303302377		End Cap, Housing Control, Rh		Appelez-nous	-
18	5303302378		End Cap, Housing Control, Lh		Appelez-nous	-
19	318129602		Panel-control, White		Appelez-nous	-
19	5303131766		Screw, Top Trim, 6-32 X 3/8 (not Illustrated)				$ 10.87
20	316066801		Clock/timer, Electronic, White		Appelez-nous	-
21	5303299529		Trim-canopy/shield, White		Appelez-nous	-
21	5303320683		Screw, Top Trim, 6-20 X 3/8, White, (2) (not Illustrated		Appelez-nous	-
23	318015720		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	318017206		Knob-thermostat, White				$ 23.57
42	318026907		Trim-vent, White		Appelez-nous	-
65	3016309		Cover-control Housing		Appelez-nous	-
68	5303302376		Housing-control		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*00400	5303300414		Spacer, Cork & Rubber				$ 13.18
*00401	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*00402	5303300265		Screw, 8-18 X 1/2				$ 15.17
*00403	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*00404	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18

    View Diagram in Separate Window       Print Part List
