01 - Cover

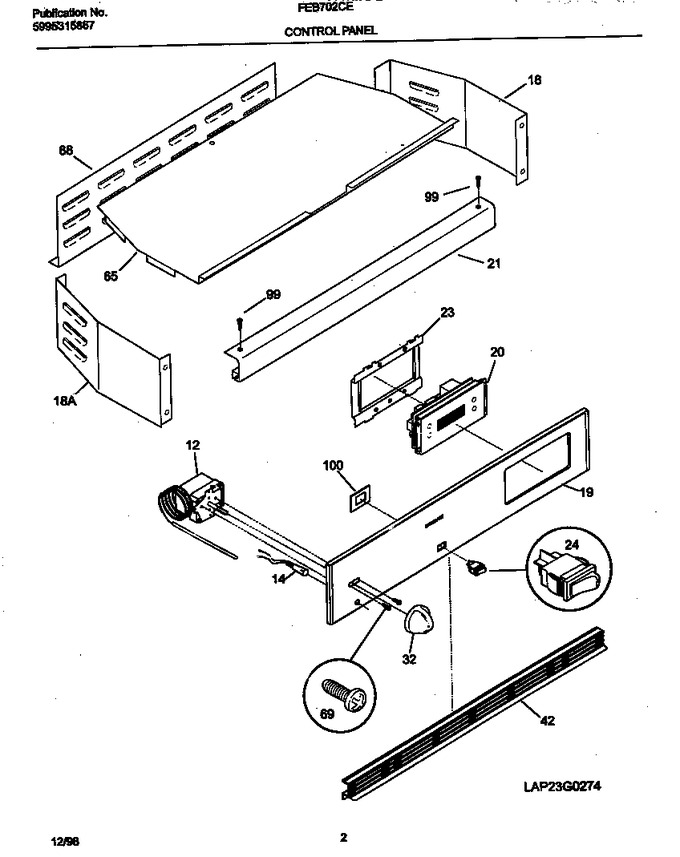

02 - Control Panel


03 - Cavity/elements


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058300		Thermostat-oven		Appelez-nous	-
14	5303320424		Light/lamp, Indicator, (3)		Appelez-nous	-
18	5303302378		End Cap, Housing Control, Lh		Appelez-nous	-
18	5303302377		End Cap, Housing Control, Rh		Appelez-nous	-
19	318129602		Panel-control, White		Appelez-nous	-
20	318011919		Clock/timer, Electronic, White		Appelez-nous	-
21	5303299529		Trim-canopy White,white		Appelez-nous	-
23	318015720		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
36	318017206		Knob-thermostat, White				$ 23.57
42	318026908		Trim-vent,white		Appelez-nous	-
65	53044016961		Cover-control Housing		Appelez-nous	-
68	5303302376		Housing-control		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303320683		Screw,top Trim,6-20 X 3/8,white		Appelez-nous	-
100	318112200		Mtg Rocker Switch		Appelez-nous	-
*05720	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*05721	53033084582		Screw,10-24 X 1/4		Appelez-nous	-
*05722	3201861		Screw, 6 X 3/8				$ 0.76

    View Diagram in Separate Window       Print Part List
