SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Top Assembly


07 - Wiring Information

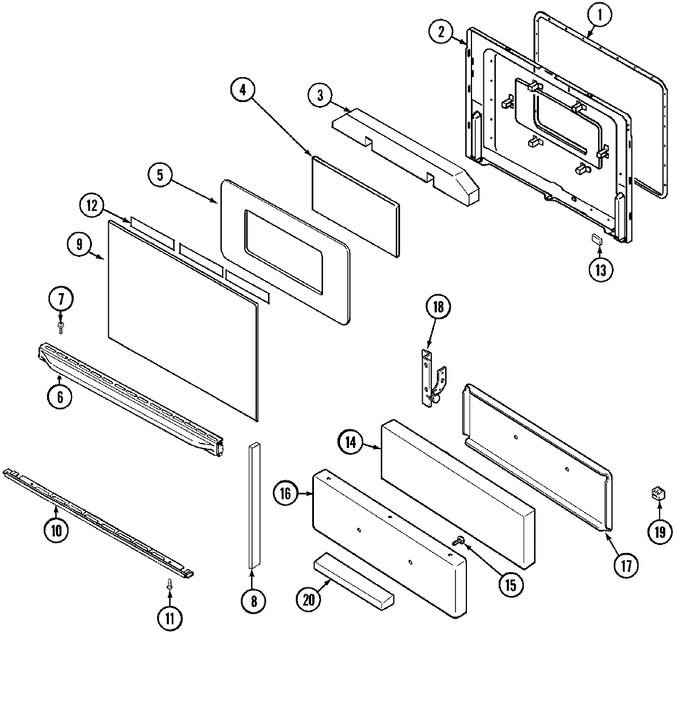

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	74005097		Lining, Door	10	Appelez-nous	-
3	74002458		Insulation, Door	10	Appelez-nous	-
4	74002459		Glass, Door (inner)	10	Appelez-nous	-
5	74002461		Baffle, Door	10	Appelez-nous	-
5	7101P209-60		Screw	10	Appelez-nous	-
6	74003429		Handle, Door (blk)	10			$ 93.87
7	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
8	74003430		End Cap, Door (blk)	10			$ 59.35
9	74003431		Glass, Door (outer-blk)	10	Appelez-nous	-
10	74003432		Trim, Bottom (blk)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
13	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
14	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
15	74002481		Screw	10			$ 5.82
16	74005046		Panel, Drawer (bsq)	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74007553		Lining, Drawer	14	Appelez-nous	-
17	74002397		Lining, Drawer	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	74007560		Hinge, Drawer	14			$ 61.30
18	74002398		Hinge, Drawer	10	Appelez-nous	-
19	8016P015-60		Glide	10			$ 5.65
20	74001820		Handle (short-chr)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
