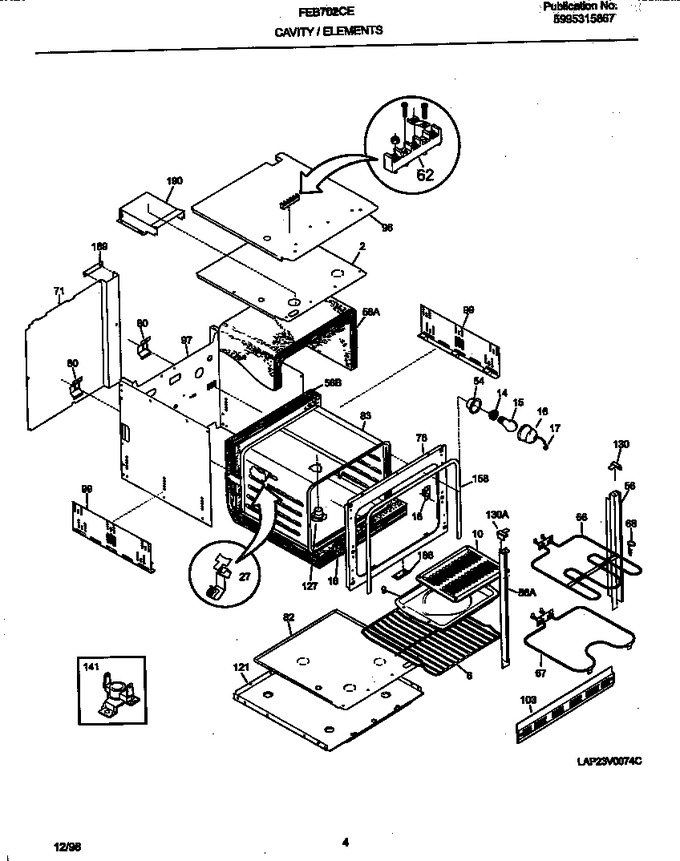

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Cavity/elements


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303299731		Trim-door Handle,upper		Appelez-nous	-
3	5303299730		Trim-door Handle,white,upper		Appelez-nous	-
4	5303299728		Glass-oven Door,white,outer,b		Appelez-nous	-
6	5303316954		Shield-insulation		Appelez-nous	-
7	5303302388		Insulation, Oven Door		Appelez-nous	-
9	5303320491		Liner-oven Door		Appelez-nous	-
10	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
11	5303320493		Cover-hinge Cutout				$ 6.93
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
18	5303299723		Seal-rope,lower Door		Appelez-nous	-
23	5303299711		Hinge-oven Door, Lower, Assy		Appelez-nous	-
23	5303299712		Hinge-oven Door, Upper, Assy		Appelez-nous	-
28	318090220		Strike-door				$ 57.04
39	5303299726		Handle-door, White, Oven		Appelez-nous	-
41	5303299744		Hinge-oven Door,lower		Appelez-nous	-
41	5303299746		Hinge-oven Door,upper		Appelez-nous	-
51	5303299739		Bracket, Handle Mtg, White, Lower				$ 172.57
51	5303299738		Bracket,white,upper				$ 98.86
*05723	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*05724	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*05725	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
