SELECT A DIAGRAM

01 - Cover

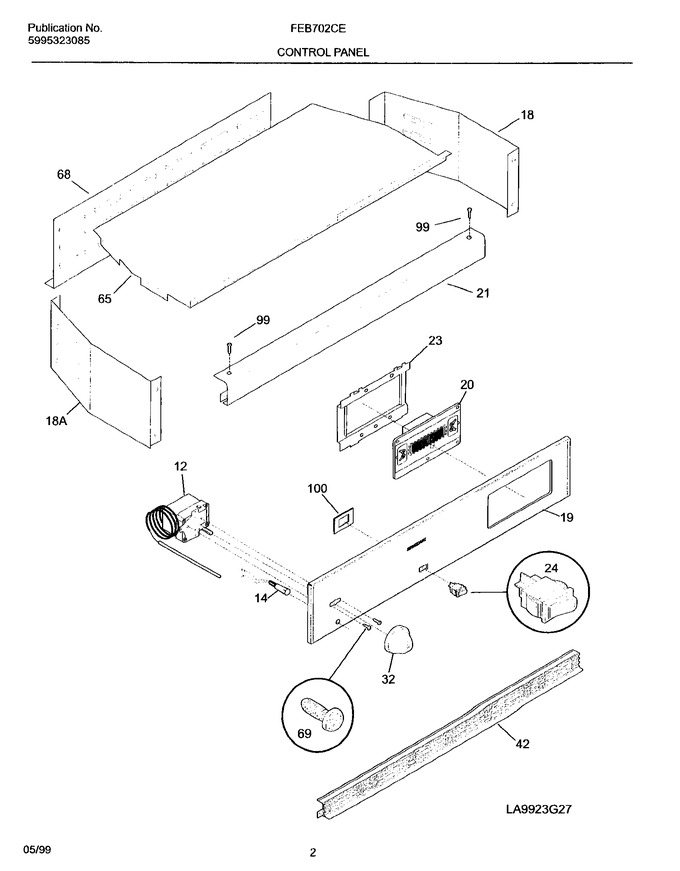

03 - Control Panel


05 - Cavity/elements


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303320424		Light/lamp, Indicator		Appelez-nous	-
18	318172500		End Cap		Appelez-nous	-
19	318129602		Panel-control, White		Appelez-nous	-
21	5303299529		Trim-canopy/shield, White		Appelez-nous	-
23	318015721		Bracket-timer		Appelez-nous	-
32	318017206		Knob-thermostat, White				$ 23.57
42	318026908		Trim-vent,white		Appelez-nous	-
65	5304401696		Cover-control Housing		Appelez-nous	-
68	318086700		Housing Control		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303316956		Screw, 6-20 X 3/8 (white)		Appelez-nous	-
100	318112200		Plate-mtg Rocker Switch		Appelez-nous	-
18A	318172501		End Cap		Appelez-nous	-
F12	318058300		Thermostat-oven		Appelez-nous	-
F20	318013914		Clock-timer		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	3201861		Screw, 6 X 3/8				$ 0.76

    View Diagram in Separate Window       Print Part List
