01 - Blower Plenum
02 - Burner Box

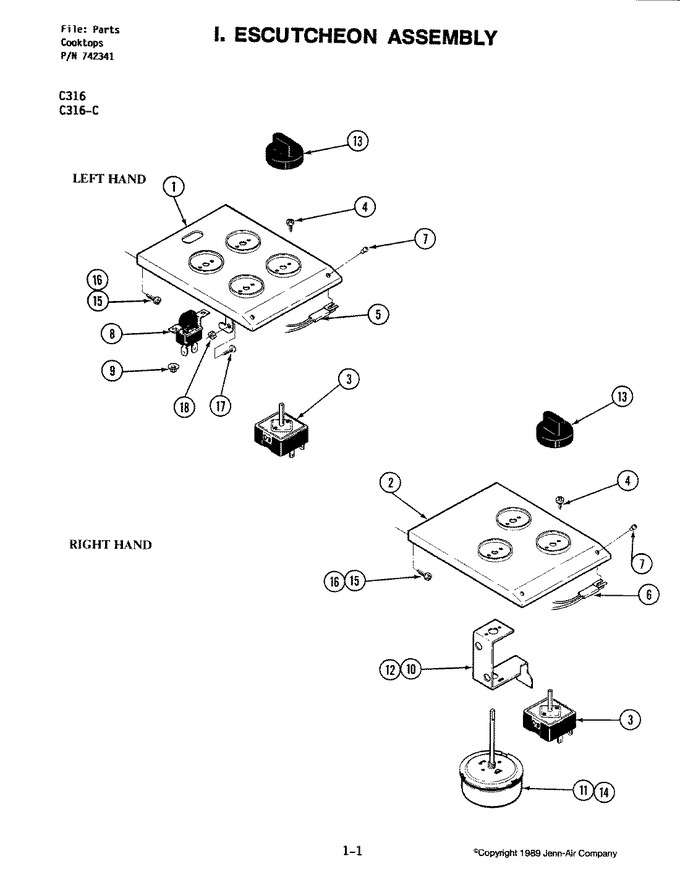

03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704210 | Escutcheon | 11 |
|
- | ||||
| 2 | 71002449 | Escutcheon (rt-blk) | 13 |
|
- | ||||
| 2 | 704212 | Escutcheon (rt) | 11 |
|
- | ||||
| 3 | W11120791 | Switch, Infinite (Replaces: 703650) | 11 |
|
Immediately | $ 98.55 | |||
| 4 | Y703935 | Screw | 11 |
|
- | ||||
| 5 | 704209 | Light, Pilot | 11 |
|
- | ||||
| 6 | 704214 | Light, Pilot (rt) | 11 |
|
- | ||||
| 7 | 703927 | Lens | 11 |
|
- | ||||
| 8 | Y704573 | Switch, Fan (blk) | 11 |
|
- | ||||
| 9 | Y04100035 | Nut, Push | 11 |
|
- | ||||
| 10 | 704333 | Bracket, Timer (rt) | 11 |
|
- | ||||
| 11 | 707732 | Timer | 11 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 13 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 11 |
|
Immediately | $ 21.09 | |||
| 14 | 704208 | Knob, Clock | 11 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: Y705007) | 11 |
|
Immediately | $ 12.62 | |||
| 16 | 704213 | Harness, Jumper | 11 |
|
- | ||||
| 16 | 712436 | Kit, Escutcheon Wire | 11 |
|
- | ||||
| 16 | Y700834 | Clip | 11 |
|
- | ||||
| 17 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 6.07 | ||||
| 18 | WP488130 | Nut (Replaces: Y701396) | 11 |
|
$ 6.27 | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
