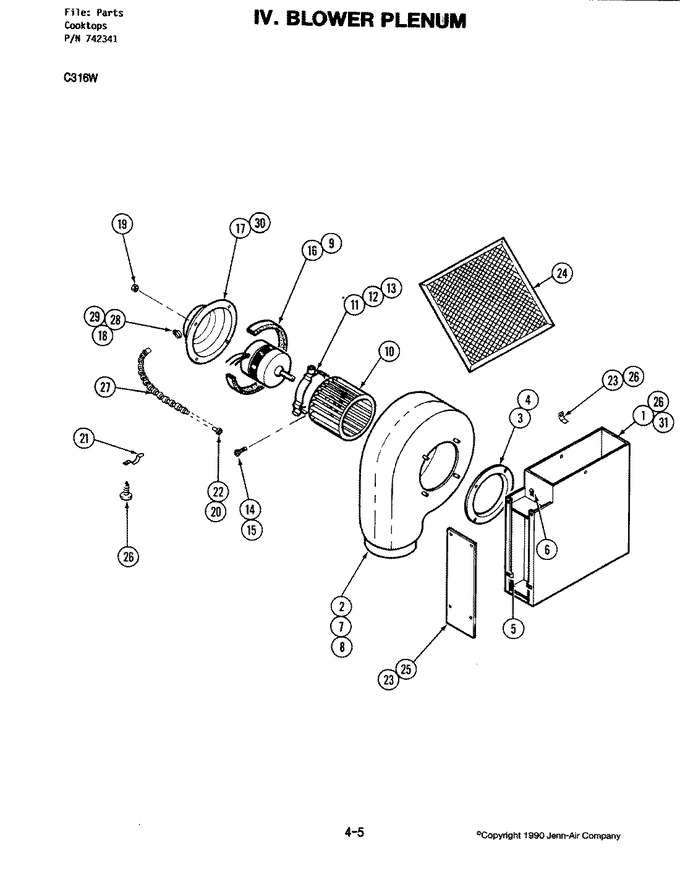

01 - Blower Plenum (c316w)


02 - Burner Box (c316w)


03 - Escutcheon Assembly (c316w)


04 - Top Assembly (c316w)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712434		Plenum		Appelez-nous	-
2	712008		Scroll, Blower Assy.		Appelez-nous	-
3	Y704758		Ring, Inlet		Appelez-nous	-
4	702889		Locknut Cap, W/nylon Insert		Appelez-nous	-
5	Y707831		Clip		Appelez-nous	-
6	701958		Clip, Tinnerman		Appelez-nous	-
7	Y704761		Ring, Restrictor		Appelez-nous	-
8	Y704762		Retainer		Appelez-nous	-
9	Y705032		Motor, Blower				$ 254.76
10	WPY707985		Wheel, Blower   (Replaces: Y707985)			Immediately	$ 145.55
11	Y707393		Band, Motor		Appelez-nous	-
12	WP71003558		Isolator   (Replaces: Y708926)				$ 11.47
13	707407		Screw				$ 6.42
14	Y707402		Screw		Appelez-nous	-
15	707161		Nut		Appelez-nous	-
16	Y715957		Foam, Urethane		Appelez-nous	-
17	Y704968		Cover, Motor		Appelez-nous	-
18	707766		Connector		Appelez-nous	-
19	WPY707702		Locknut   (Replaces: Y707702)			Immediately	$ 6.26
20	WP71001171		Screw   (Replaces: Y701379)				$ 6.26
21	712310		Tinnerman		Appelez-nous	-
22	712311		Bushing		Appelez-nous	-
23	Y707688		Retainer, Filter		Appelez-nous	-
24	WP707929		Filter, Grease   (Replaces: 707929)			Immediately	$ 44.51
25	Y700464		Plate, Cover		Appelez-nous	-
26	WP59002061		Screw   (Replaces: Y707172)				$ 6.98
27	Y707758		Conduit		Appelez-nous	-
28	715780		Clamp, Cable		Appelez-nous	-
29	Y707335		Clip		Appelez-nous	-
30	Y712550		Motor Cover Assy		Appelez-nous	-
31	712254		Clamp, Cable		Appelez-nous	-
