01 - Blower Plenum (c316w-c)
02 - Burner Box (c316w-c)

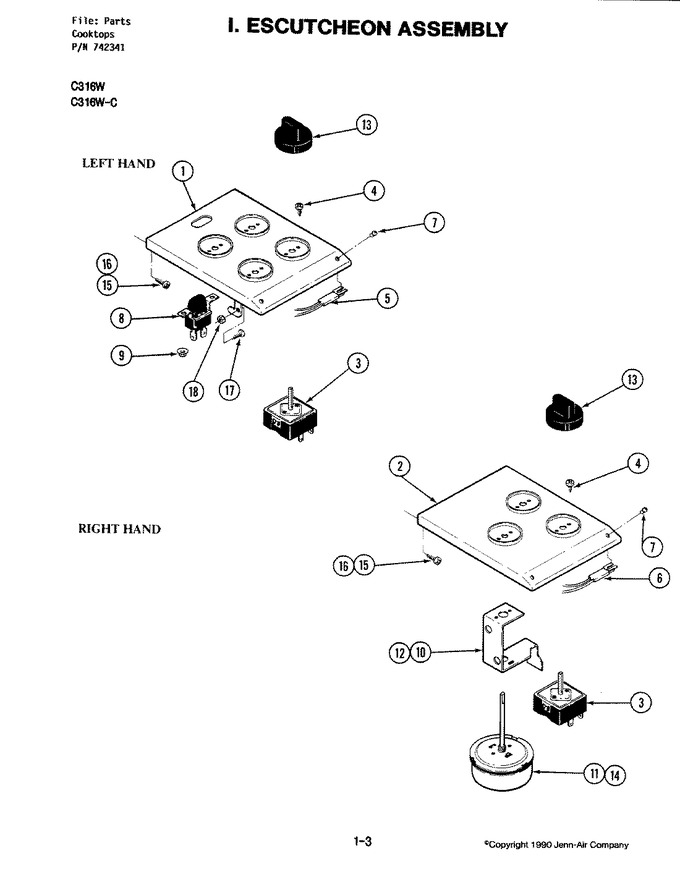

03 - Escutcheon Assembly (c316w)
04 - Top Assembly (c316w-c)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704444 | Escutcheon (lt/wht) | 1 |
|
- | ||||
| 2 | 71002449 | Escutcheon (rt-blk) | 13 |
|
- | ||||
| 2 | 705313 | Escutcheon (rt) | 1 |
|
- | ||||
| 3 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 4 | Y704864 | Screw | 1 |
|
- | ||||
| 5 | 704209 | Light, Pilot | 1 |
|
- | ||||
| 6 | 704214 | Light, Pilot (rt) | 1 |
|
- | ||||
| 7 | Y704607 | Lens | 1 |
|
- | ||||
| 8 | Y704605 | Switch, Fan | 1 |
|
- | ||||
| 9 | Y04100035 | Nut, Push | 1 |
|
- | ||||
| 10 | 704333 | Bracket, Timer (rt) | 1 |
|
- | ||||
| 11 | 707732 | Timer | 1 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 13 | WPY703899 | Knob, Switch----s (Replaces: Y704447) | 1 |
|
Immediately | $ 21.09 | |||
| 14 | Y705321 | Knob, Timer | 1 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: Y705007) | 1 |
|
Immediately | $ 12.62 | |||
| 16 | 704213 | Harness, Jumper | 1 |
|
- | ||||
| 16 | 712436 | Kit, Escutcheon Wire | 1 |
|
- | ||||
| 16 | Y700834 | Clip | 1 |
|
- | ||||
| 17 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 18 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 |
