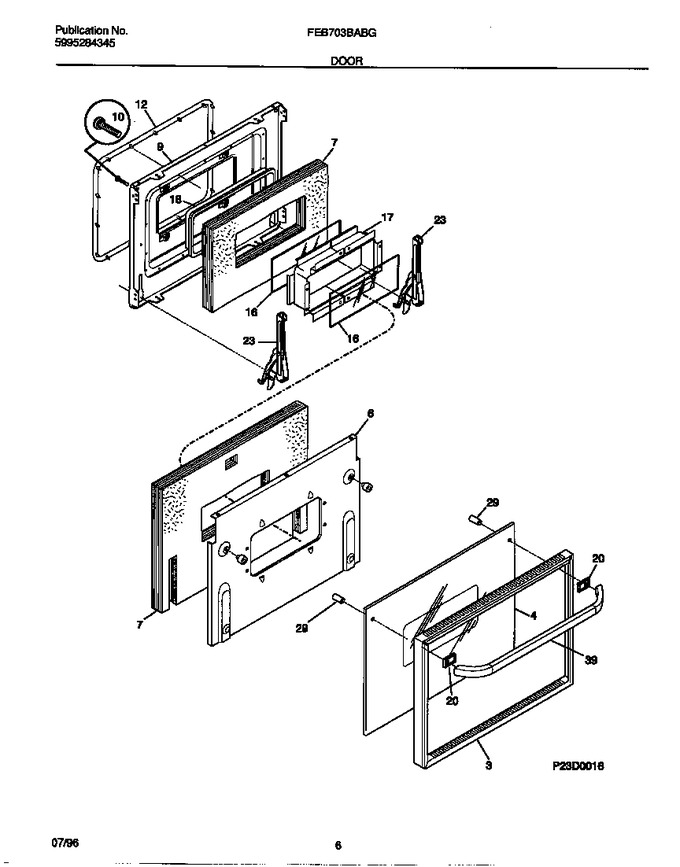

04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318026600 | Trim,oven Door ,black |
|
- | |||||
| 4 | 5303016258 | Glass-oven Door, Black, Outer |
|
- | |||||
| 6 | 5303210005 | Shield - Air Wash |
|
- | |||||
| 7 | 5303308470 | Insulation, Oven Door |
|
- | |||||
| 9 | 318048402 | Liner-oven Door |
|
- | |||||
| 10 | 5303311217 | Screw-handle |
|
$ 12.71 | |||||
| 12 | 5303316768 | Seal-oven Door |
|
- | |||||
| 16 | 5303016336 | Glass-oven Door, Heat Barrier |
|
- | |||||
| 17 | 5303212864 | Spacer-glass |
|
- | |||||
| 18 | 3016338 | Seal-rope |
|
$ 43.20 | |||||
| 20 | 5303300175 | Spacer-handle,black |
|
- | |||||
| 23 | 5303202037 | Hinge-oven Door, Assembly |
|
- | |||||
| 29 | 5303210003 | Spacer-handle Mtg, (2) |
|
- | |||||
| 39 | 5303300948 | Handle-door, Black, Oven |
|
- | |||||
| *51648 | 3202113 | Button, Plug |
|
- | |||||
| *51649 | 5303300414 | Spacer, Cork & Rubber |
|
$ 13.18 | |||||
| *51650 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *51651 | 5303308456 | Screw, 8-18 X 0.531, Door Frame |
|
$ 10.06 | |||||
| *51652 | 5303316982 | Tape, Seal, (3) |
|
- |
