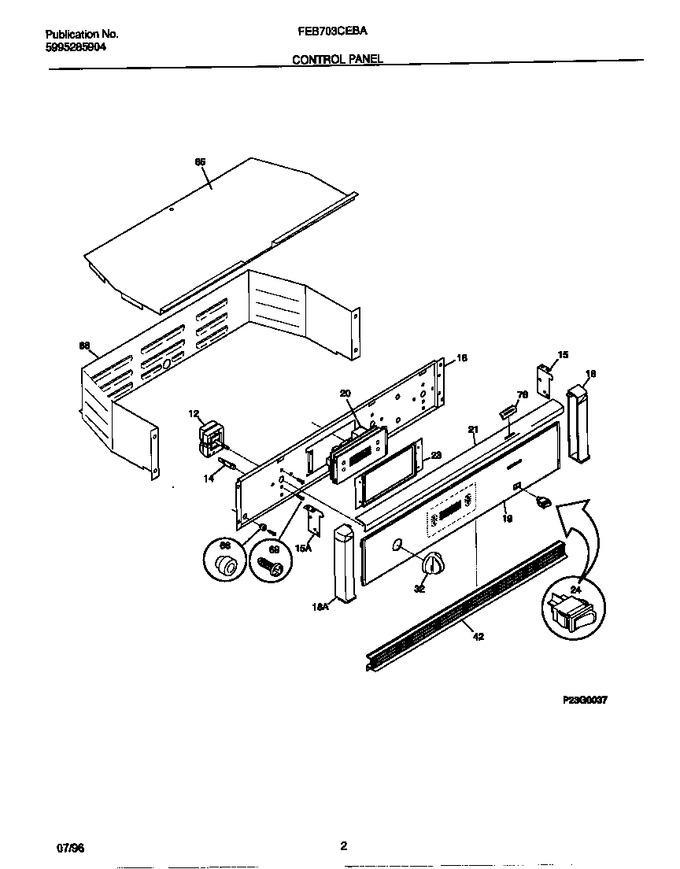

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058300		Thermostat-oven		Appelez-nous	-
14	5303320424		Light/lamp, Indicator		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	318129711		Panel-control, Black		Appelez-nous	-
19	5303131766		Screw, 6-32 X 3/8``, Control Panel, (2) (not Illustrated)				$ 10.87
20	316066800		Clock/timer, Electronic, Black		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
21	5303301310		Trim-canopy/shield, Black		Appelez-nous	-
23	318015700		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	5303304950		Knob-control, Black, (1)		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
65	5303302386		Cover-control Housing		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
78	5303302396		Cover, Oven Vent, Black		Appelez-nous	-
*66960	5303300414		Spacer, Cork & Rubber				$ 13.18
*66961	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*66962	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
