SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

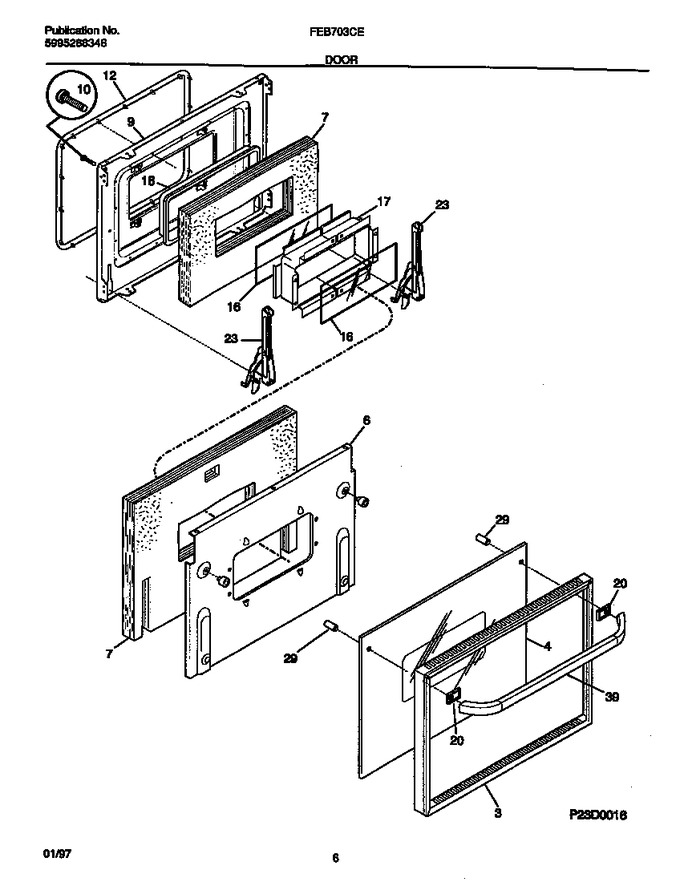

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5303016258		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048402		Liner-oven Door, Lower		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	5303316768		Seal-oven Door		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	5303212864		Spacer-glass		Appelez-nous	-
18	3016338		Seal-rope				$ 43.20
20	318014300		Spacer-handle, Black, (2)				$ 36.44
23	5303202037		Hinge-oven Door, Assembly		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	316091106		Handle-door,black ,oven		Appelez-nous	-
*08607	3202113		Button, Plug		Appelez-nous	-
*08608	5303300414		Spacer, Cork & Rubber				$ 13.18
*08609	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*08610	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*08611	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
*08612	5303316982		Tape, Seal, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
