02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:

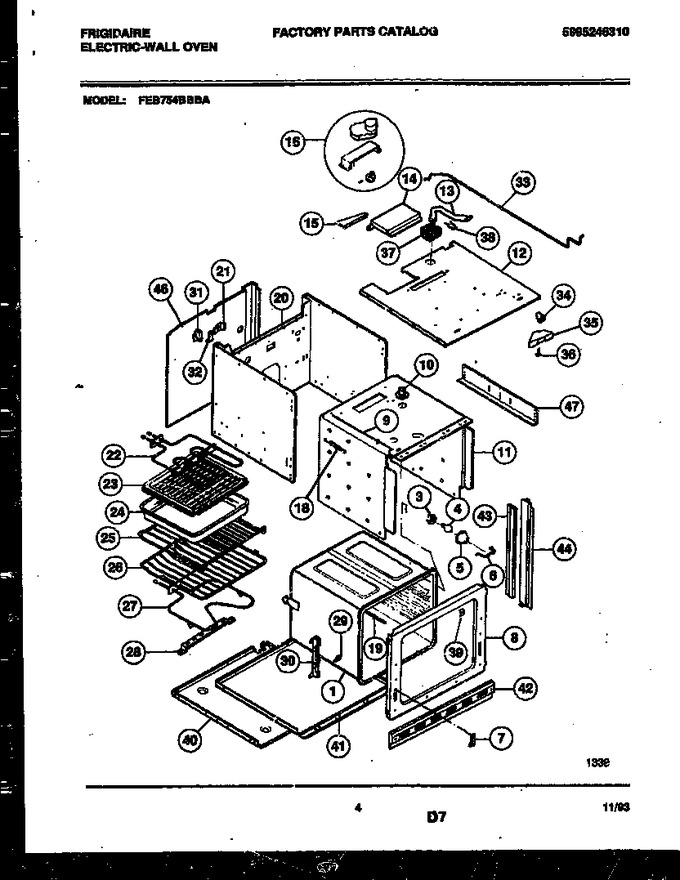

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303296870 | Liner-oven |
|
- | |||||
| 3 | 08011171 | Receptacle |
|
- | |||||
| 4 | 3131908 | Bulb |
|
- | |||||
| 5 | 5304524341 | Oven Light Cover (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 5303299384 | Frame, Oven |
|
- | |||||
| 9 | 3202077 | Rod-switch |
|
- | |||||
| 10 | 3205683 | Adapter Assy |
|
- | |||||
| 11 | 5303299270 | Shield, Insulation |
|
- | |||||
| 12 | 3016249 | Wrapper - Top |
|
- | |||||
| 13 | 530330422 | Duct, Oven Vent |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 16 | 5308015743 | Motor Latch Assembly |
|
$ 211.92 | |||||
| 18 | 3204114 | Spring-rod |
|
- | |||||
| 20 | 5303300980 | Wrapper |
|
- | |||||
| 21 | 5303301261 | Spring,oven |
|
- | |||||
| 22 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 23 | 3201920 | Insert-broiler Pan |
|
- | |||||
| 24 | 3201919 | Pan-broiler |
|
- | |||||
| 25 | 5303299271 | Oven Shelf |
|
- | |||||
| 26 | 318345216 | Oven Shelf (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 27 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 28 | 3016248 | Support, Element |
|
- | |||||
| 29 | 3201632 | Oven Support |
|
- | |||||
| 30 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 31 | 5303275924 | Switch-door |
|
$ 92.03 | |||||
| 32 | 3202384 | Bracket, Switch |
|
- | |||||
| 33 | 3016241 | Rod, Latch Switch |
|
- | |||||
| 34 | 3051648 | Latch |
|
- | |||||
| 35 | 3019069 | Housing-latch |
|
- | |||||
| 36 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 37 | 3016302 | Insulation - Vent |
|
- | |||||
| 38 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 39 | 3016313 | Button, Plug |
|
- | |||||
| 40 | 3016277 | Wrapper, Base |
|
- | |||||
| 41 | 5303300094 | Shield-insulation |
|
- | |||||
| 42 | 5303300095 | Trim-base |
|
- | |||||
| 43 | 5303298952 | Trim-inner-rh |
|
- | |||||
| 44 | 5303298951 | Trim-side Outer |
|
- | |||||
| 46 | 3016314 | Cover, Wire |
|
- | |||||
| 47 | 5303299686 | Support,adjustable |
|
- | |||||
| *89317 | 5303302280 | Safety Thermostat |
|
$ 203.24 | |||||
| 43A | 5303298953 | Trim-inner-lh |
|
- | |||||
| 44A | 3019048 | Insulation (non-illustrated) |
|
- | |||||
| 44B | 3016274 | Insulation - Back (non-illustrated) |
|
- |
