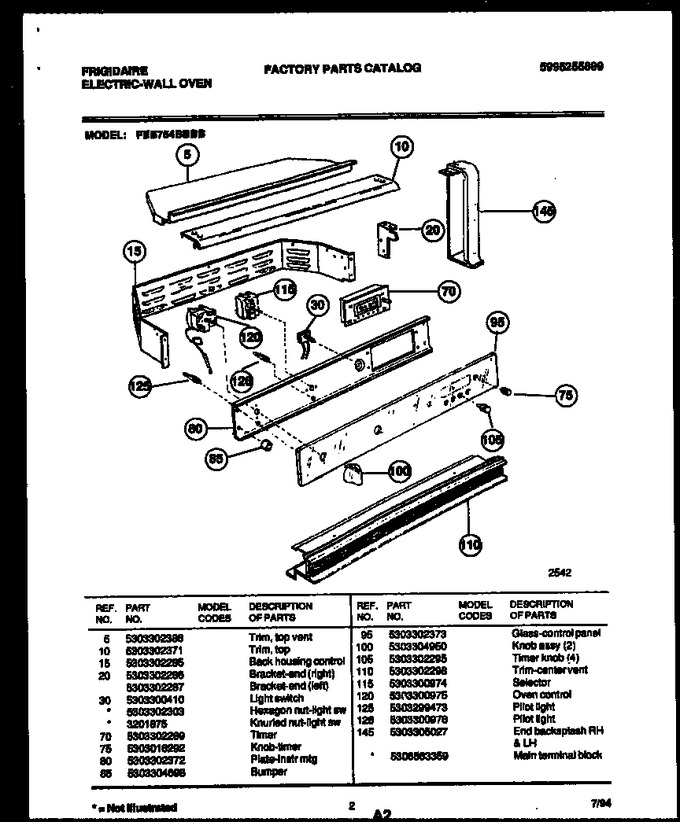

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5303302386 | Trim, Top Vent |
|
- | |||||
| 10 | 5303302371 | Trim, Top |
|
- | |||||
| 15 | 5303302285 | Back-housing Control |
|
- | |||||
| 20 | 5303302286 | Bracket-end-right |
|
- | |||||
| 30 | 5303300410 | Light Switch |
|
- | |||||
| 70 | 5303302289 | Timer |
|
- | |||||
| 75 | 5303016292 | Knob Timer |
|
- | |||||
| 80 | 5303302372 | Plate-instr Mtg |
|
- | |||||
| 85 | 5303304698 | Bumper |
|
- | |||||
| 95 | 5303302373 | Glass-control Panel |
|
- | |||||
| 100 | 5303304950 | Knob Assy (2) |
|
- | |||||
| 105 | 5303302295 | Timer Knob (4) |
|
- | |||||
| 110 | 5303302298 | Trim Center Vent |
|
- | |||||
| 115 | 5303300974 | Selector |
|
- | |||||
| 120 | 5303300975 | Oven Control |
|
$ 287.35 | |||||
| 125 | 5303299473 | Pilot Light |
|
- | |||||
| 126 | 5303300976 | Pilot Light |
|
- | |||||
| 145 | 5303305027 | End Backsplash Rh & Lh |
|
- | |||||
| *10865 | 5304409888 | Main-terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20A | 5303302287 | Bracket-end-left |
|
- | |||||
| 30A | 5303302303 | Hexagon Nut-light Sw (non-illustrated) |
|
- | |||||
| 30B | 3201875 | Knurled Nut-light Sw (non-illustrated) |
|
- |
