SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly


06 - Wiring Information

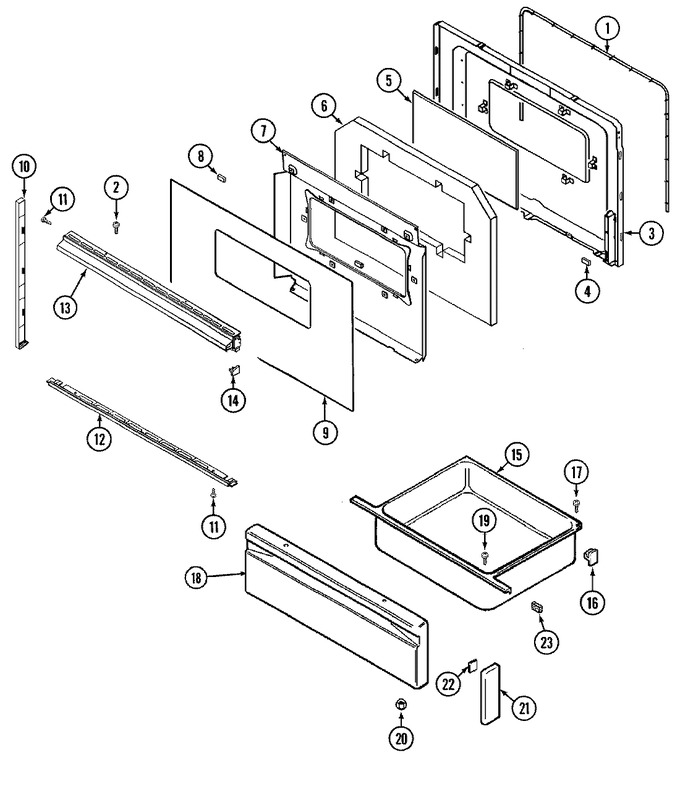

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	17		Immediately	$ 56.83
2	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	17			$ 11.89
3	2402W213-19		Lining, Door	17	Appelez-nous	-
4	8010P085-60		Spacer, Rubber	17	Appelez-nous	-
5	7902P319-60		Glass, Door (inner)----na	17	Appelez-nous	-
6	7002P158-60		Insulation, Door	17	Appelez-nous	-
7	7101P209-60		Screw	17	Appelez-nous	-
7	3601F240-80		Baffle, Door	17	Appelez-nous	-
8	8270P095-60		Tape, Double Sided	17	Appelez-nous	-
9	7902P328-60		Glass, Door (wht)	17	Appelez-nous	-
10	8270P093-60		Tape, End Cap	17	Appelez-nous	-
10	7744P065-60		End Cap, Door (wht)	17	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	17		Immediately	$ 12.62
12	7744P103-60		Trim, Bottom (wht)	17	Appelez-nous	-
13	7701P104-60		Handle, Door (wht)	17	Appelez-nous	-
14	7744P075-60		End Cap (rt)	17	Appelez-nous	-
14	7744P076-60		End Cap (lt)	17	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	17		Immediately	$ 12.62
15	3405F019-80		Drawer, Storage	17	Appelez-nous	-
16	8004P026-60		Support, Drawer (rear)	17			$ 9.29
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	17		Immediately	$ 12.62
18	2416F039-62		Panel, Drawer (wht)	17	Appelez-nous	-
19	WP7101P072-60		Screw   (Replaces: 7101P072-60)	17			$ 6.77
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	17			$ 4.00
21	7744P069-60		End Cap, Drawer (wht)	17	Appelez-nous	-
22	8270P098-60		Tape	17			$ 5.02
23	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	17			$ 11.95

    View Diagram in Separate Window       Print Part List
