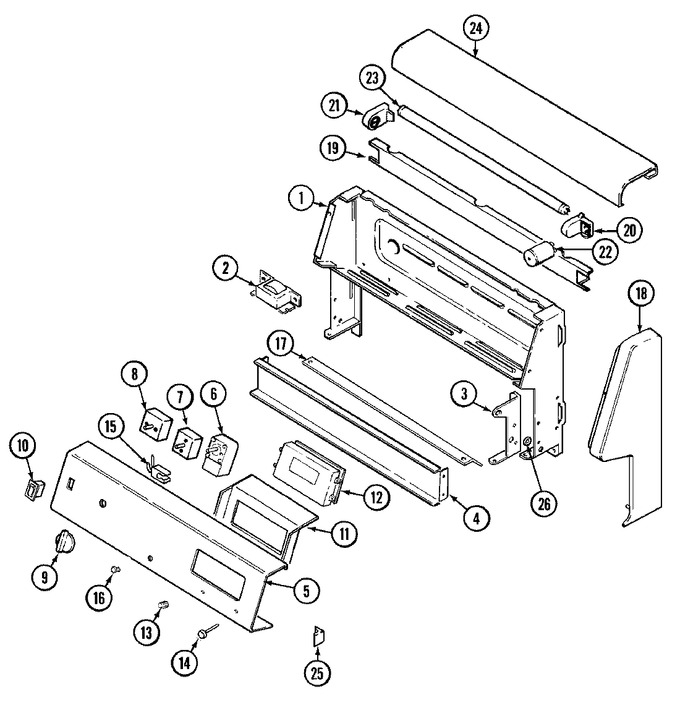

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Door/drawer (ser. Pre. 24)
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F094-51 | Housing, Control Panel | 01 |
|
- | ||||
| 2 | 7412P007-60 | Ballast | 01 |
|
- | ||||
| 2 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 3 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 4 | 3802F088-51 | Brace, Control Panel | 01 |
|
- | ||||
| 5 | 4876S059-59 | Panel, Control (blk) | 01 |
|
- | ||||
| 5 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 6 | 7404P105-60 | Thermostat | 01 |
|
$ 208.86 | ||||
| 7 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 01 |
|
$ 131.41 | ||||
| 8 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 8 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 9 | 7737P028-60 | Knob, Infinite | 01 |
|
- | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 11 | 3801F247-45 | Bracket, Clock | 01 |
|
- | ||||
| 12 | 8004P035-60 | Support, Clock | 01 |
|
- | ||||
| 12 | 7602P095-60 | Clock | 01 |
|
- | ||||
| 12 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 01 |
|
$ 0.81 | ||||
| 13 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 14 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 15 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 16 |
|
$ 106.11 | ||||
| 15 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 16 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 16 |
|
$ 6.73 | ||||
| 16 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 17 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 18 | 7726P047-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 18 | 7726P048-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 19 | 3807F406-71 | Holder, Lamp (wht) | 01 |
|
- | ||||
| 20 | 7408P029-60 | Receptacle, Light (rt) | 01 |
|
- | ||||
| 21 | 7408P030-60 | Receptacle, Snap-in (lt) | 01 |
|
- | ||||
| 22 | 7415P001-60 | Starter | 01 |
|
- | ||||
| 23 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 01 |
|
Immediately | $ 121.45 | |||
| 24 | 7724P054-60 | Cover, Light (blk) | 01 |
|
- | ||||
| 25 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 26 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| NI | 5170D145-60 | Harness, Control Panel | 01 |
|
- | ||||
| NI | 5125A336-60 | Wires, Loose | 01 |
|
- | ||||
| NI | 8113P030-60 | Manual, Use & Care | 01 |
|
- |
