SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Lower Body


04 - Upper Body


05 - Doors

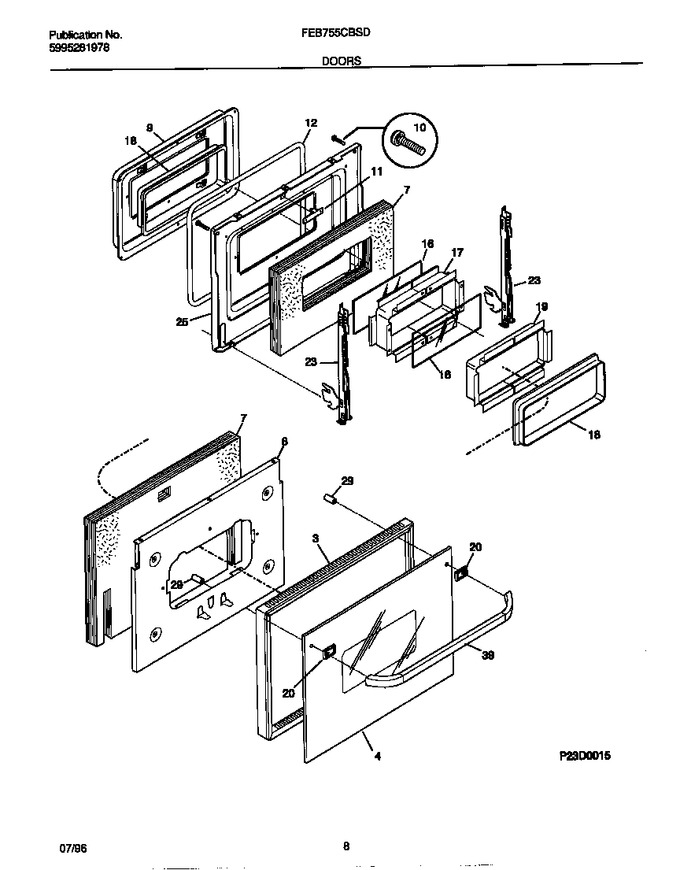

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026110		Trim-oven Door, White		Appelez-nous	-
4	5303302279		Glass-oven Door,white ,outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048402		Liner-oven Door, Lower Oven		Appelez-nous	-
9	318048301		Liner-oven Door, Upper Oven		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
11	DK1323556		Strike Plate		Appelez-nous	-
12	5303299275		Seal-oven Door, Upper Oven		Appelez-nous	-
12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	5303210008		Spacer-glass, Upper Oven		Appelez-nous	-
17	5303212864		Spacer-glass, Lower Oven		Appelez-nous	-
18	3016338		Seal-rope, Lower Oven				$ 43.20
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	5303210006		Collar-glass Mtg		Appelez-nous	-
20	5303300173		Spacer-handle,white		Appelez-nous	-
23	5303018381		Hinge-oven Door, Upper Oven				$ 145.85
23	3202464		Hinge-oven Door, Lower Oven		Appelez-nous	-
25	318038601		Liner-door Baffle,upper Oven		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	5303302278		Handle-door, White, Oven		Appelez-nous	-
*55889	3202113		Button, Plug		Appelez-nous	-
*55890	5303300414		Spacer, Cork & Rubber				$ 13.18
*55891	5303316982		Tape, Seal, (2)		Appelez-nous	-
*55892	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*55893	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06

    View Diagram in Separate Window       Print Part List
