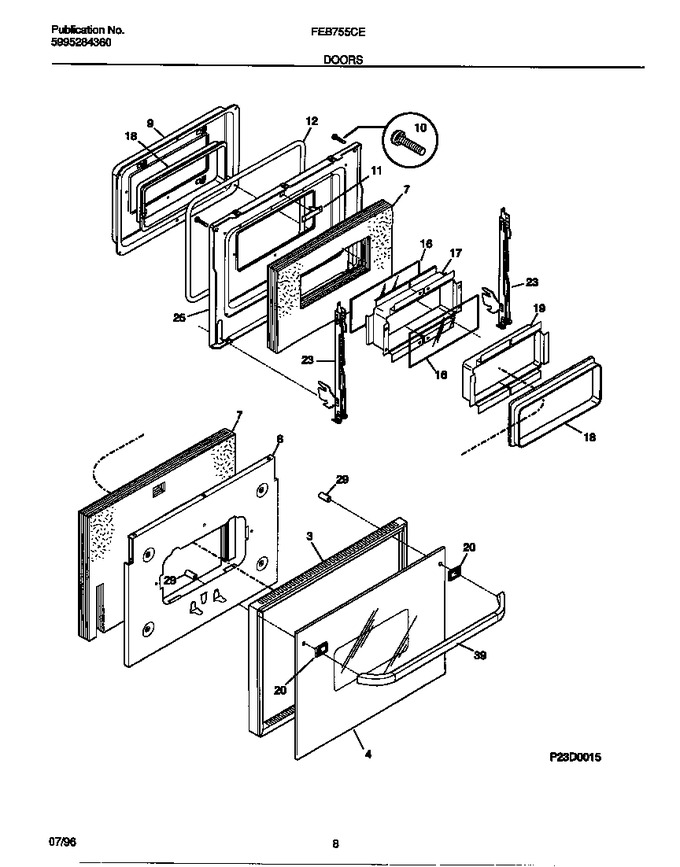

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5303016258		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
11	DK1323556		Strike Plate		Appelez-nous	-
19	5303210006		Collar-glass Mtg, Upper Oven		Appelez-nous	-
20	5303300175		Spacer-handle,black		Appelez-nous	-
25	318038601		Liner-door Baffle,upper Oven		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	5303300948		Handle-door, Black, Oven		Appelez-nous	-
*30328	3202113		Button, Plug		Appelez-nous	-
*30329	5303300414		Spacer, Cork & Rubber				$ 13.18
*30330	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*30331	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*30332	5303316982		Tape, Seal, (3)		Appelez-nous	-
12A	5303299275		Seal-oven Door, Upper Oven		Appelez-nous	-
12B	5303316768		Seal-oven Door, Lower		Appelez-nous	-
16A	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
16B	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
17A	5303210008		Spacer-glass, Upper Oven		Appelez-nous	-
17B	5303212864		Spacer-glass, Lower Oven		Appelez-nous	-
18A	3016263		Seal-rope, Upper Oven				$ 66.15
18B	3016338		Seal-rope, Lower Oven				$ 43.20
23A	5303018381		Hinge-oven Door, Upper Oven				$ 145.85
23B	3202464		Hinge-oven Door, Lower		Appelez-nous	-
23C	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
9A	318048301		Liner-oven Door, Upper Oven		Appelez-nous	-
9B	318048402		Liner-oven Door, Lower		Appelez-nous	-
