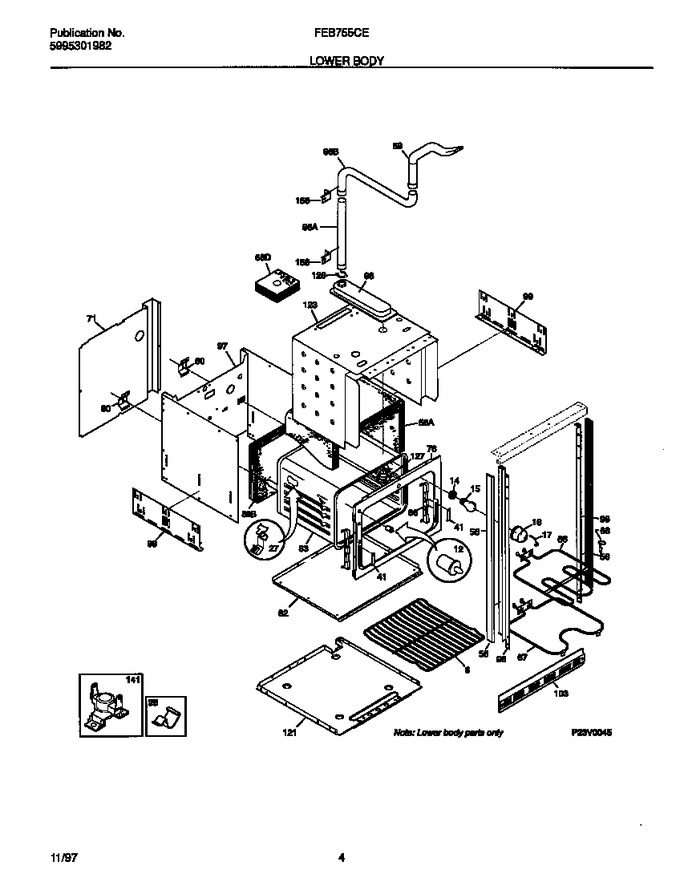

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
12	5301314211		Switch-light				$ 95.29
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	3204483		Retainer-lens		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3015722		Clip-wire		Appelez-nous	-
41	3019063		Retainer-door		Appelez-nous	-
56	5303300956		Trim,bodyside ,black ,(2)		Appelez-nous	-
56	5303320422		Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated)				$ 12.71
58	5303304702		Insulation, Oven Wrapper		Appelez-nous	-
58	5303317714		Insulation, Oven Vent		Appelez-nous	-
58	5303304703		Insulation, Oven Back		Appelez-nous	-
59	318072507		Tube,oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
67	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
68	5303307563		Support-element		Appelez-nous	-
71	5303305023		Shield-wire		Appelez-nous	-
76	318124201		Front-oven		Appelez-nous	-
76	318039511		Bracket-trim (not Illustrated)		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
82	5303304699		Shield-insulation		Appelez-nous	-
83	318089507		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
96	3016325		Duct,oven Vent ,center		Appelez-nous	-
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
96	318072515		Duct-vent Pipe		Appelez-nous	-
97	5303300980		Wrapper, Back & Sides		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
103	318028700		Trim-base, Black				$ 156.12
121	318145002		Wrapper,base		Appelez-nous	-
123	5303299270		Shield-insulation, Top & Sides		Appelez-nous	-
126	3016303		Clip-insulator Retainer		Appelez-nous	-
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
141	5303302280		Thermostat-safety				$ 203.24
156	5303317198		Bracket-oven Vent		Appelez-nous	-
*37321	3018802		Clip-cable		Appelez-nous	-
*37322	3051647		Housing-door Latch		Appelez-nous	-
*37323	3201861		Screw, 6 X 3/8, (4)				$ 0.76
*37324	3201881		Lockwasher		Appelez-nous	-
*37325	08002868		Screw 10 X 24 X 1/2				$ 14.18
*37326	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*37327	5303300421		Cover-capillary		Appelez-nous	-
*37328	5303320505		Box & Wires Assy		Appelez-nous	-
98A	5303300954		Trim-side, Inner, Rh		Appelez-nous	-
98B	5303300955		Trim-side, Inner, Lh		Appelez-nous	-
