SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Cavity/elements Upper Oven

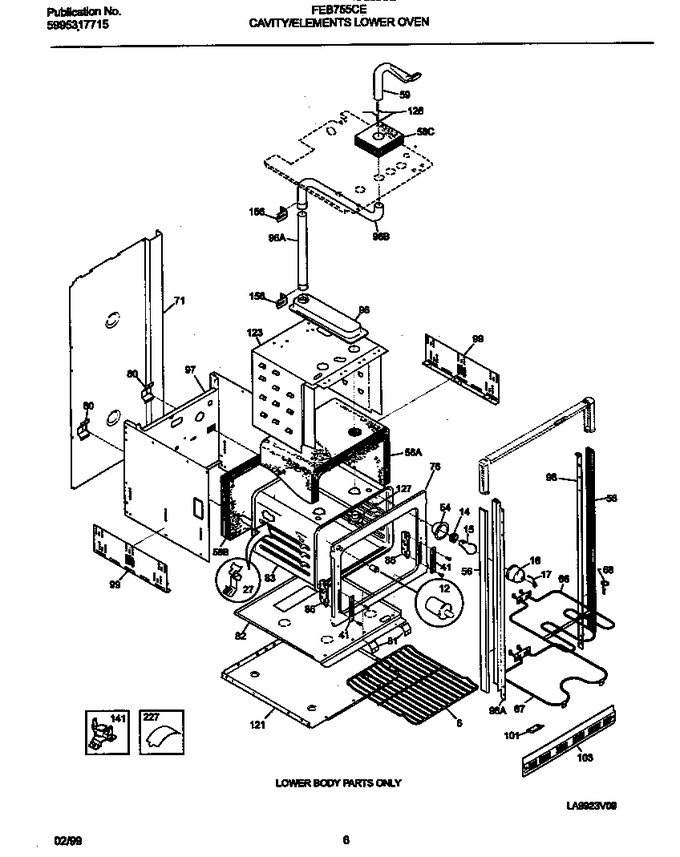

04 - Cavity/elements Lower Oven


05 - Upper/lower Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
12	5301314211		Switch-light				$ 95.29
14	316116400		Socket - Light   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer-lens		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
41	5303310526		Retainer Door				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	5303300956		Trim-bodyside,black		Appelez-nous	-
58	5303304702		Insulation-wrapper		Appelez-nous	-
58	5303317714		Insulation, Oven Vent		Appelez-nous	-
58	5303304703		Insulation, Oven Back		Appelez-nous	-
59	318072507		Tube,oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
67	5303323865		Element-bake		Appelez-nous	-
68	5304403015		Support-element				$ 35.04
71	5303305023		Shield-wire		Appelez-nous	-
76	318124206		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303323710		Bracket-oven		Appelez-nous	-
82	5303304699		Shield-insulation		Appelez-nous	-
83	318089507		Liner-oven Assy		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
96	3016325		Duct,oven Vent ,center		Appelez-nous	-
96	5303317197		Duct-oven Assy		Appelez-nous	-
96	3016327		Duct-oven Vent Pipe		Appelez-nous	-
97	318066701		Wrapper-back & Sides		Appelez-nous	-
98	318029333		Trim,side ,inner,lh		Appelez-nous	-
98	318029332		Trim-side Inner Rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
101	318039511		Bracket-trim,black		Appelez-nous	-
103	318028700		Trim-base, Black				$ 156.12
121	318145002		Wrapper,base		Appelez-nous	-
123	3180714300		Shield-insulation Top & Sides		Appelez-nous	-
126	3016303		Clip-insulation Retainer		Appelez-nous	-
127	318072800		Adapter Assy		Appelez-nous	-
141	5303302280		Thermostat-safety				$ 203.24
156	5303317198		Bracket-oven Vent		Appelez-nous	-
227	5303323955		Clip-retainer		Appelez-nous	-
*86132	08002868		Screw 10 X 24 X 1/2				$ 14.18
*86133	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*86134	3018802		Clip-cable		Appelez-nous	-
*86135	3051070		Screw,10-24 X 7/16		Appelez-nous	-
*86136	5303935083		Screw 10-16x1-1/4				$ 9.19
*86137	5303302745		Screw <10-16x-1-1/8>				$ 8.35
*86138	5303320422		Screw-6-20 X 5/16				$ 12.71
*86139	5303323277		Screw (8-18x13/32)				$ 8.66
*86140	5303320505		Box & Wires Assy		Appelez-nous	-
*86141	3015722		Clip-wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
