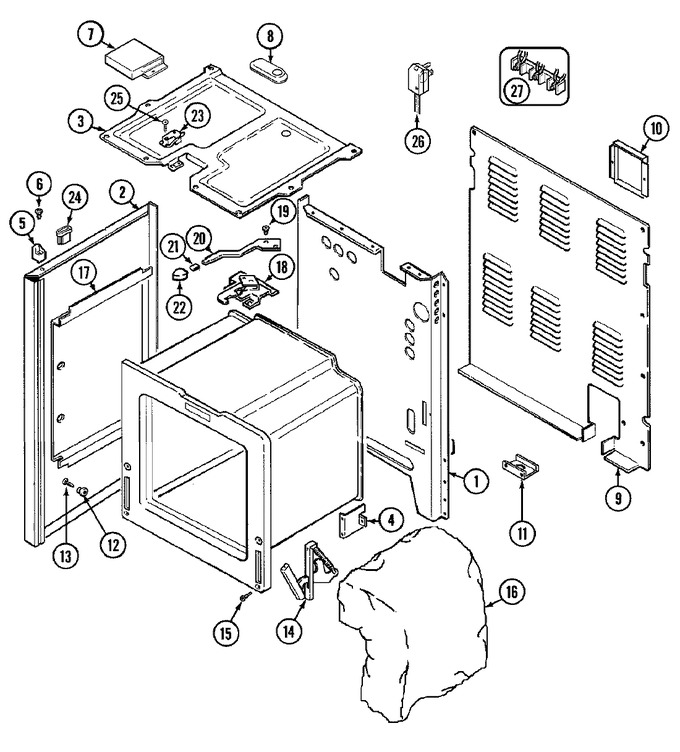

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7403P160-60 | Switch, Hi-limit | 01 |
|
- | ||||
| 1 | 74001341 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F085-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 2 | 74001885 | Panel, Side (alm) | 15 |
|
- | ||||
| 3 | 4011F219-19 | Box, Burner | 01 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 7 | 4005F398-80 | Cover, Latch Assy. | 01 |
|
- | ||||
| 8 | 4005F432-45 | Cover, Vent | 01 |
|
- | ||||
| 8 | 7101P103-60 | Screw | 01 |
|
- | ||||
| 9 | 4005F348-51 | Cover, Main Back Wire | 01 |
|
- | ||||
| 10 | 4005F427-51 | Cover, Access | 01 |
|
- | ||||
| 11 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 12 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 13 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 01 |
|
Immediately | $ 6.98 | |||
| 14 | 7106P033-60 | Hinge, Door | 01 |
|
- | ||||
| 15 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 16 | 4804F029-60 | Insulation, Wrap | 01 |
|
- | ||||
| 16 | 4804F030-60 | Insulation, Back & Bottom | 01 |
|
- | ||||
| 17 | 3804F103-51 | Retainer, Insulation (side) | 01 |
|
- | ||||
| 18 | 8002P025-60 | Latch Assy. | 01 |
|
- | ||||
| 18 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 19 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 19 | 7109P015-60 | Washer | 01 |
|
- | ||||
| 20 | 8009P016-60 | Lever, Lock | 01 |
|
- | ||||
| 21 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 22 | 7701P132-60 | Handle, Door Latch (blk) | 01 |
|
- | ||||
| 23 | 7101P031-60 | Screw | 01 |
|
- | ||||
| 23 | 7403P228-60 | Switch, Door Latch | 01 |
|
- | ||||
| 23 | 7403P323-60 | Switch, Lock----na | 01 |
|
- | ||||
| 23 | 3604F203-45 | Shield, Lock Switch | 01 |
|
- | ||||
| 24 | 8007P023-60 | Bushing, Prop | 01 |
|
- | ||||
| 26 | 7402P050-60 | Cord, Power | 01 |
|
- | ||||
| 27 | 7401P041-60 | Board, Terminal | 01 |
|
- |
