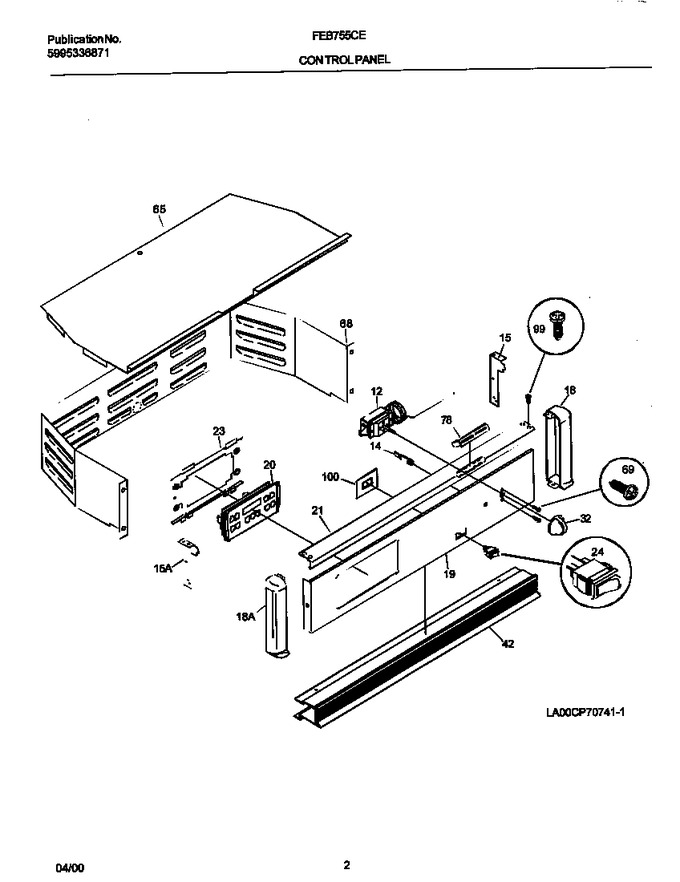

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058200		Thermostat-oven, Non S/c, Lower		Appelez-nous	-
14	5303320497		Light/lamp, Indicator, Red, 250 V		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311209		End Cap, White, Lh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318129722		Panel-control, Metal, White		Appelez-nous	-
20	318012911		Clock/timer, Eoc, White		Appelez-nous	-
21	5303302283		Trim-canopy/shield, White		Appelez-nous	-
23	318015725		Bracket,clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	318017206		Knob-thermostat, White				$ 23.57
42	5303318709		Trim-vent, White		Appelez-nous	-
65	318038803		Cover-control Housing		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
78	318036901		Cover, Oven Vent, White		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
100	318112200		Mtg Rocker Switch		Appelez-nous	-
*61200	3201861		Screw, 6 X 3/8				$ 0.76
*61201	08002868		Screw 10 X 24 X 1/2				$ 14.18
*61202	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*61203	5303300414		Spacer, Cork & Rubber				$ 13.18
*61204	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*61205	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*61206	5303320666		Spacer-bracket Relay		Appelez-nous	-
*61207	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*61208	5303323136		Screw-ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
