SELECT A DIAGRAM

01 - Cover

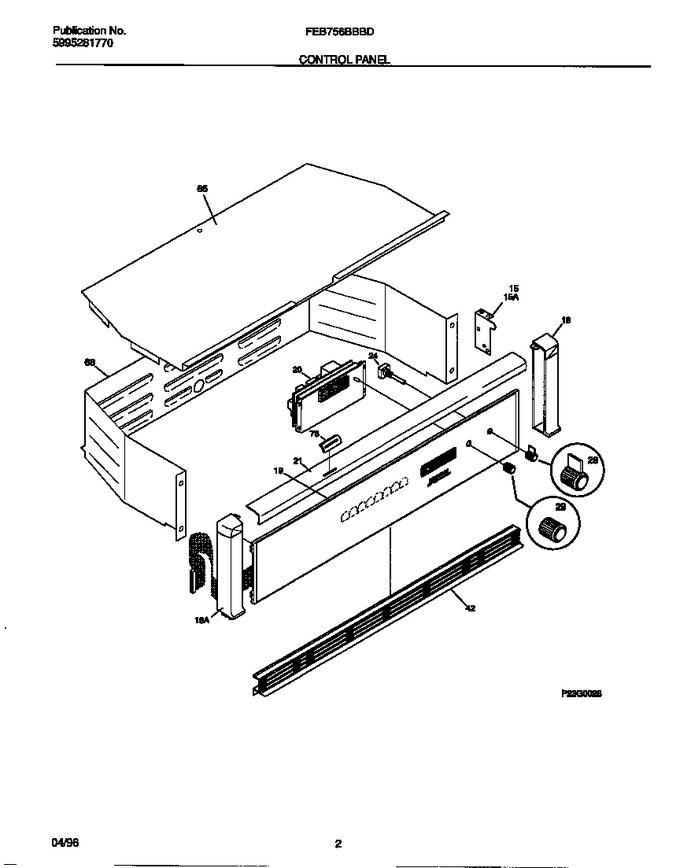

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302287		Support-backguard, Lh		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	5303303416		Panel-control, Black		Appelez-nous	-
20	5303307401		Clock/timer, Eoc		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
21	5303302371		Trim-canopy/shield, Black		Appelez-nous	-
24	3202654		Switch-light/lamp		Appelez-nous	-
24	5303310393		Bracket, Light Switch (not Illustrated)		Appelez-nous	-
24	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2) (not Illustrated)		Appelez-nous	-
28	5303302400		Knob-clock, Black		Appelez-nous	-
29	5303302403		Knob-clock/timer, Black		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
65	5303302386		Cover-control Housing		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
78	5303302396		Cover, Oven Vent, Black		Appelez-nous	-
*53760	5303302412		Shield-backsplash		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
