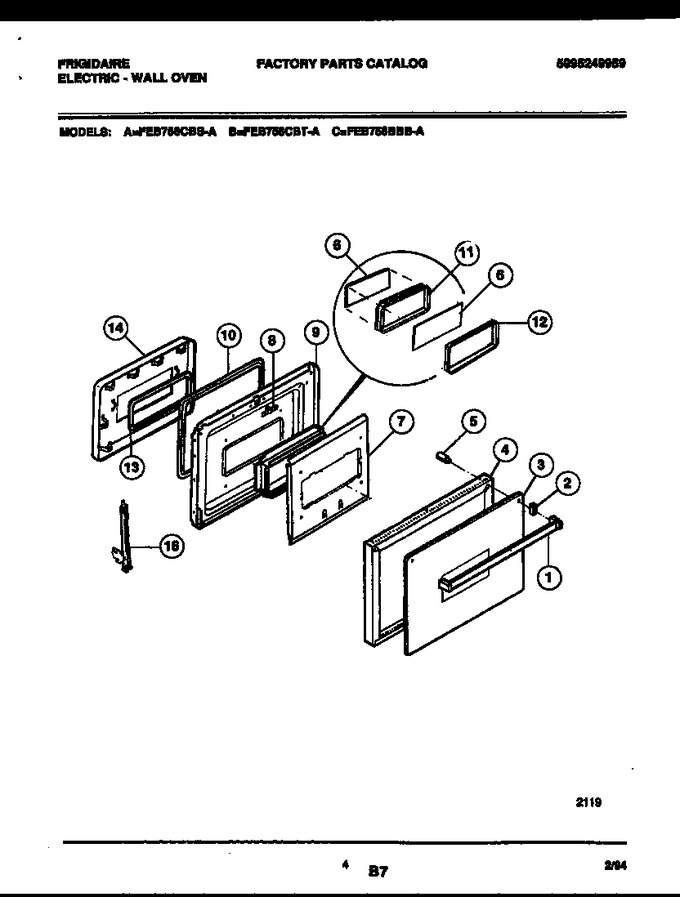

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302278 | Handle-door |
|
- | |||||
| 2 | 5303300173 | Spacer-handle |
|
- | |||||
| 3 | 5303302279 | Door Glass |
|
- | |||||
| 4 | 5303211148 | Trim - Frame |
|
- | |||||
| 5 | 5303210003 | Spacer, Handle |
|
- | |||||
| 6 | 5303210001 | Glass-baffle |
|
- | |||||
| 7 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 8 | 5301167830 | Strike, Assembly |
|
- | |||||
| 9 | 5303300949 | Inner Door Assembly |
|
- | |||||
| 10 | 5303299275 | Seal, Door |
|
- | |||||
| 11 | 5303210008 | Retainer, Glass |
|
- | |||||
| 12 | 5303210006 | Collar - Glass |
|
- | |||||
| 13 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 14 | 5303300950 | Liner-door |
|
- | |||||
| 16 | 5303018381 | Hinge Assembly |
|
$ 145.85 | |||||
| *97765 | 5303212886 | Tape-inner Door |
|
- | |||||
| *97765 | 5303299277 | Insulation, Door |
|
- | |||||
| *97765 | 3202113 | Button, Plug |
|
- | |||||
| *97765 | 5303299481 | Screw-handle (2) |
|
- |
