SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

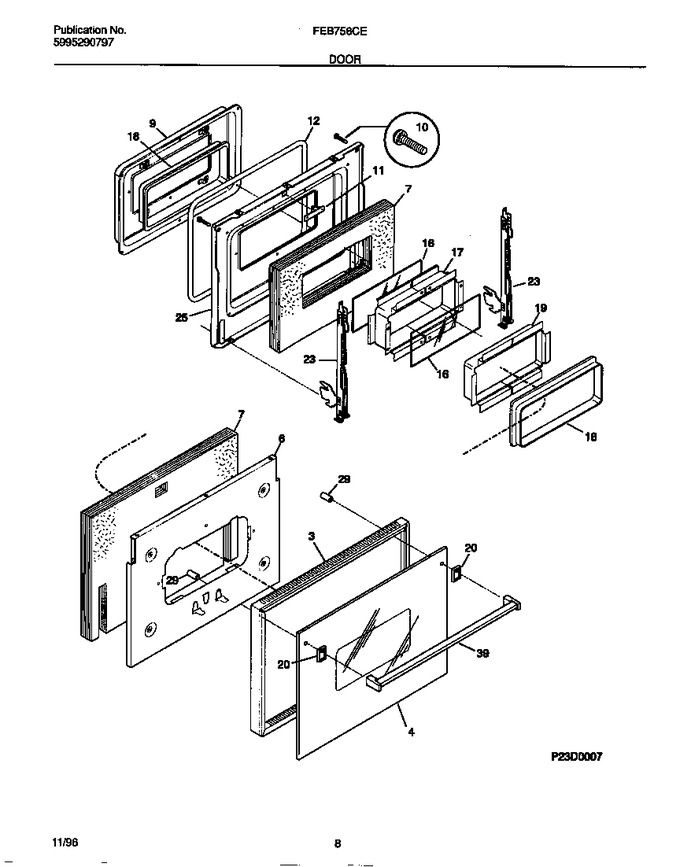

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5303016258		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048301		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
11	5301167830		Strike Plate		Appelez-nous	-
12	5303299275		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	5303210008		Spacer-glass		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
25	318038601		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	316091106		Handle-door,black ,oven		Appelez-nous	-
*36930	3202113		Button, Plug		Appelez-nous	-
*36931	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*36932	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*36933	5303316982		Tape, Seal, (3)		Appelez-nous	-
23A	5303018381		Hinge-oven Door				$ 145.85
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
