SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

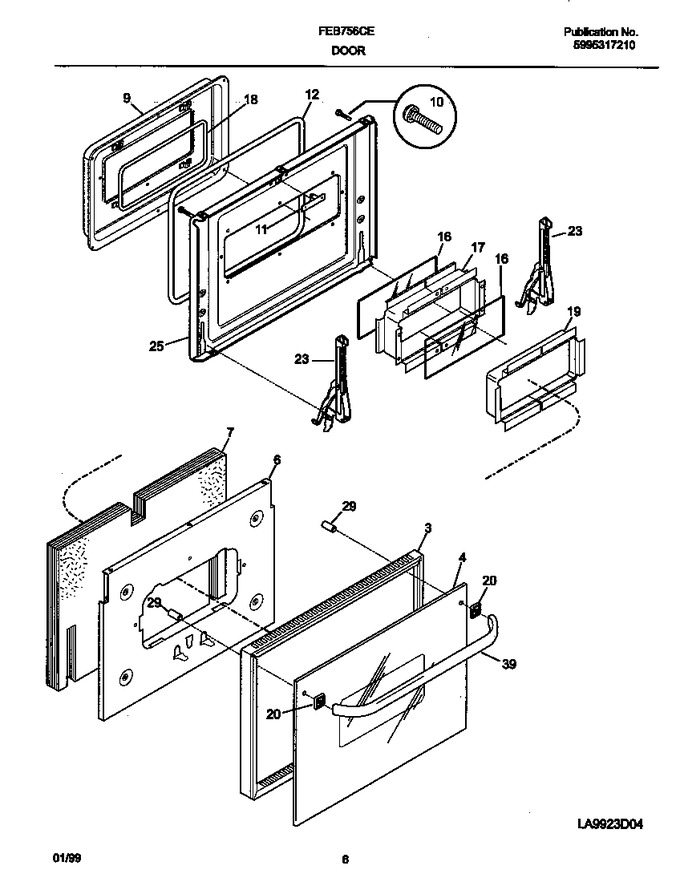

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5304401679		Glass-oven Door,black		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation-door		Appelez-nous	-
9	318043804		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
11	5303294969		Strike Plate		Appelez-nous	-
12	3206270		Seal-oven Door		Appelez-nous	-
16	5303324250		Glass-oven Door				$ 184.54
17	318139100		Spacer-glass Lower		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014300		Spacer-handle,black				$ 36.44
23	5303311259		Hinge-oven Door		Appelez-nous	-
25	318048301		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg		Appelez-nous	-
39	316091106		Handle-door,black		Appelez-nous	-
*04729	5303308456		Screw,8-18 X 0.531				$ 10.06
*04730	3202113		Button, Plug		Appelez-nous	-
*04731	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
*04732	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*04733	3051070		Screw,10-24 X 7/16		Appelez-nous	-
*04734	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
