View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Cavity/element

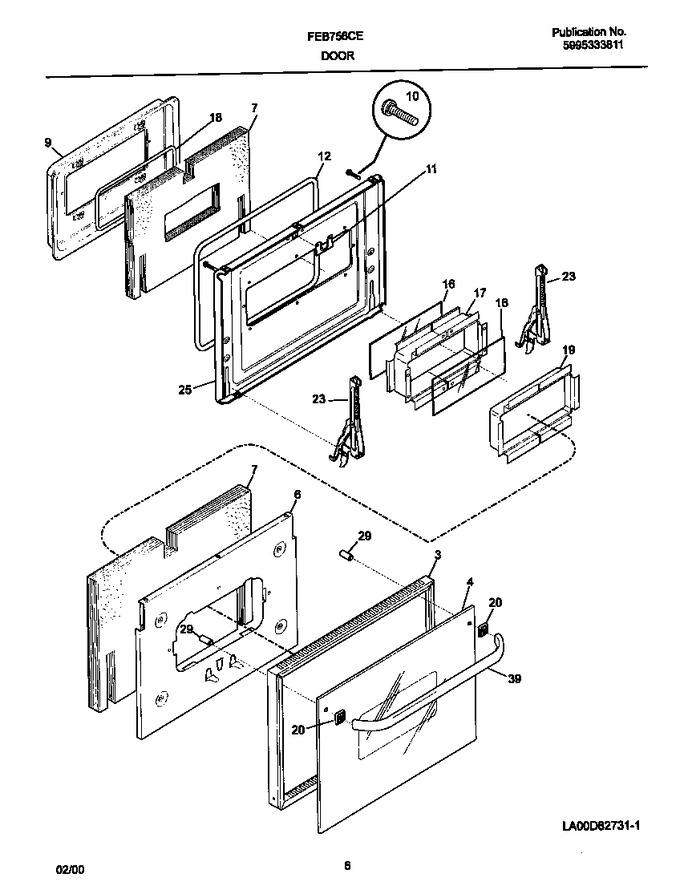

04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303300093 | Shield-oven Top |
|
- | |||||
| 6 | 5303299271 | Shelf-oven |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 5303298951 | Trim-bodyside, Black |
|
- | |||||
| 58 | 3019048 | Insulation,oven Back ,wrapper |
|
- | |||||
| 58 | 5303311220 | Insulation,oven Vent |
|
- | |||||
| 59 | 318072507 | Tube,oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-bake |
|
- | |||||
| 67 | 5303323865 | Element-bake |
|
- | |||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 71 | 318071110 | Shield-rear Wall |
|
- | |||||
| 76 | 318124212 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 318089518 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 318118903 | Rod-latch |
|
- | |||||
| 89 | 318120710 | Switch-door,(2) |
|
- | |||||
| 89 | 318095903 | Motor-latch Assy |
|
- | |||||
| 97 | 318066703 | Wrapper-back Side (Replaces: 318066702) |
|
- | |||||
| 98 | 318029322 | Trim-side Inner Rh |
|
- | |||||
| 98 | 318029323 | Trim-side Inner Lh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 101 | 318039511 | Bracket-trim |
|
- | |||||
| 103 | 318028700 | Trim-base, Black |
|
$ 156.12 | |||||
| 121 | 318145002 | Wrapper,base |
|
- | |||||
| 123 | 318071442 | Shield-insulation,top & Sides |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| 187 | 318013501 | Tube, Rod-latch |
|
- | |||||
| 189 | 318042500 | Retainer Plate |
|
- | |||||
| 231 | 5303300421 | Cover-capillary |
|
- | |||||
| 257 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *61537 | 3015722 | Clip-wire |
|
- | |||||
| *61538 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 | |||||
| *61539 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *61540 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *61541 | 5303300265 | Screw,8-18 X 1/2 ,chrome |
|
$ 15.17 | |||||
| *61542 | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 | |||||
| *61543 | 5303308449 | Fastener |
|
- | |||||
| *61544 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| *61545 | 5303320422 | Screw,6-20 X 5/16 ,side Trim ,(4) |
|
$ 12.71 | |||||
| *61546 | 5303323136 | Screw-ground |
|
- | |||||
| *61547 | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| *61548 | 5303324184 | Screw-8 X 5/16 |
|
Immediately | $ 14.18 | ||||
| *61550 | 318078518 | Box & Wires Assy |
|
- |
