SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

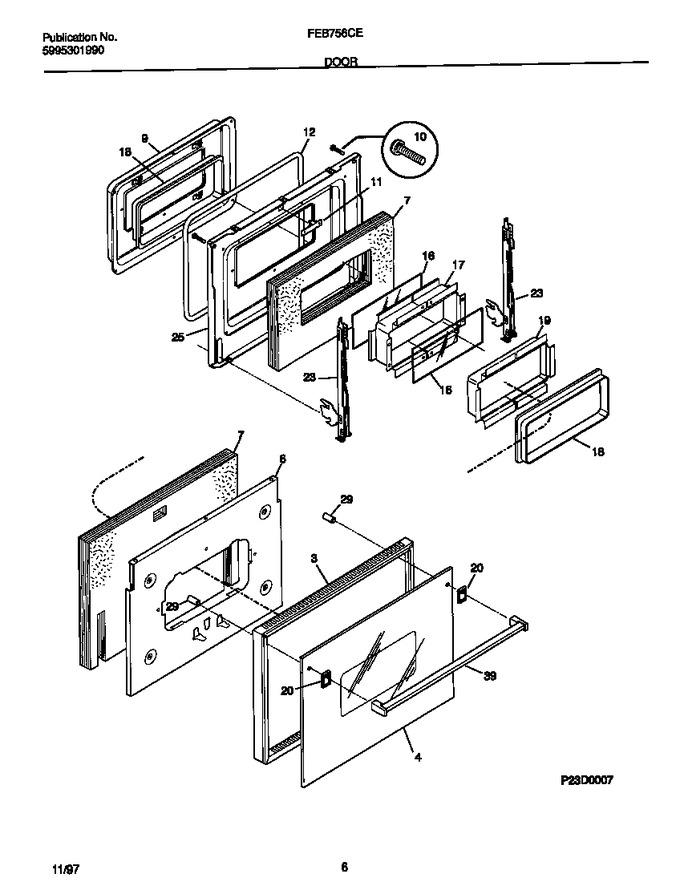

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026110		Trim-oven Door, White		Appelez-nous	-
4	5303302279		Glass-oven Door,white ,outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048301		Liner-oven Door, Upper Oven		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
11	5301167830		Strike Plate		Appelez-nous	-
12	3206270		Seal-oven Door, Upper Oven		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	318074101		Hinge-oven Door, (2)		Appelez-nous	-
25	318038601		Liner-door Baffle,upper Oven		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	316091107		Handle-door, White, Oven		Appelez-nous	-
*52211	3202113		Button, Plug		Appelez-nous	-
*52212	318139200		Collar-glass Mtg		Appelez-nous	-
*52213	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*52214	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*52215	5303316982		Tape, Seal, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
