01 - Cover

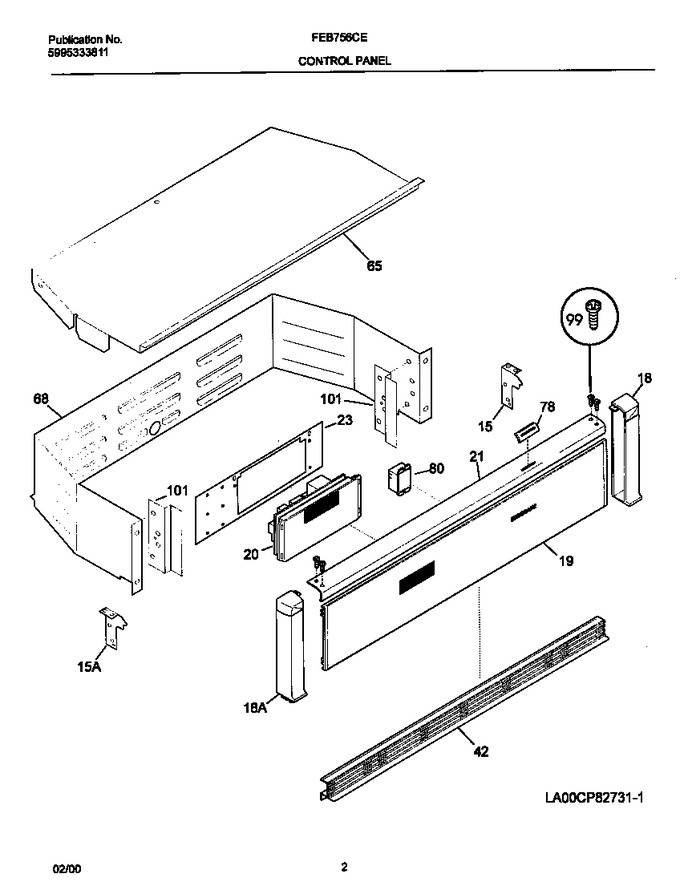

02 - Control Panel


03 - Cavity/element


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311209		End Cap, White, Lh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318030013		Panel-control, White		Appelez-nous	-
20	318010900		Clock/timer, Eoc		Appelez-nous	-
21	5303311212		Trim-canopy/shield, White				$ 238.98
23	318111602		Bracket-timer		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
42	5303302296		Trim-vent, White		Appelez-nous	-
65	318038803		Cover-control Housing		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
78	5303302394		Cover, Oven Vent, White		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
101	5303302412		Shield-backsplash		Appelez-nous	-
*61520	3201861		Screw, 6 X 3/8				$ 0.76
*61521	08002868		Screw 10 X 24 X 1/2				$ 14.18
*61522	318046212		Wiring Diag Elec L		Appelez-nous	-
*61523	318082927		Wiring Harness		Appelez-nous	-
*61524	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*61525	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*61526	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*61527	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*61528	5303320666		Spacer-bracket Relay		Appelez-nous	-
*61529	5303323136		Screw-ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
