SELECT A DIAGRAM

01 - Cover

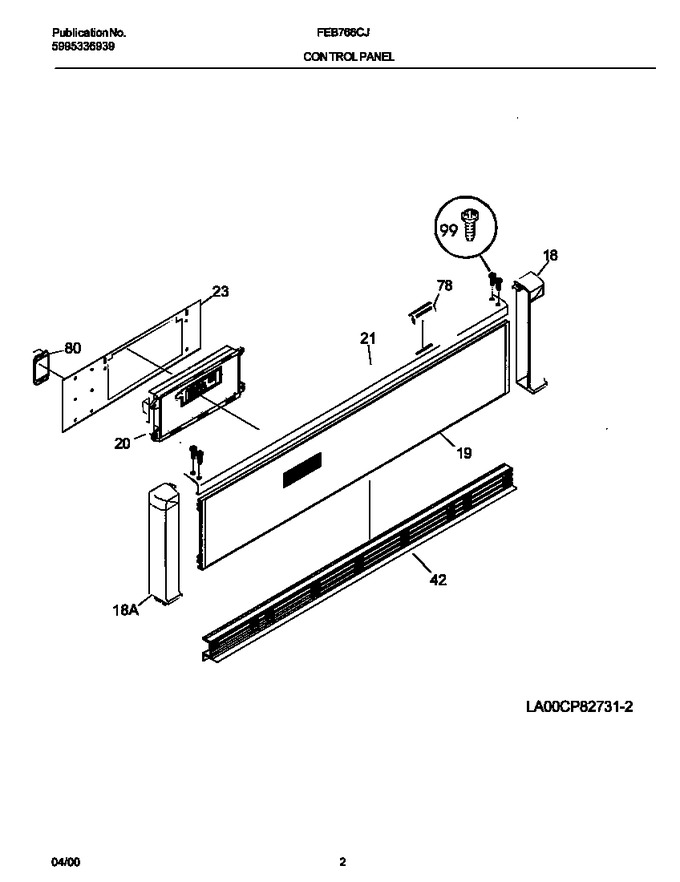

02 - Control Panel


03 - Cavity/elements


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311209		End Cap, White, Lh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318030013		Panel-control, White		Appelez-nous	-
20	318010900		Clock/timer, Eoc		Appelez-nous	-
21	5303311212		Trim-canopy White,white				$ 238.98
23	318111602		Bracket-clock Mtg		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
78	5303302394		Cover, Oven Vent, White		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
*32680	3201861		Screw, 6 X 3/8				$ 0.76
*32681	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*32682	5303300414		Spacer, Cork & Rubber				$ 13.18
*32683	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*32684	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*32685	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*32686	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*32687	5303323136		Screw-ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
