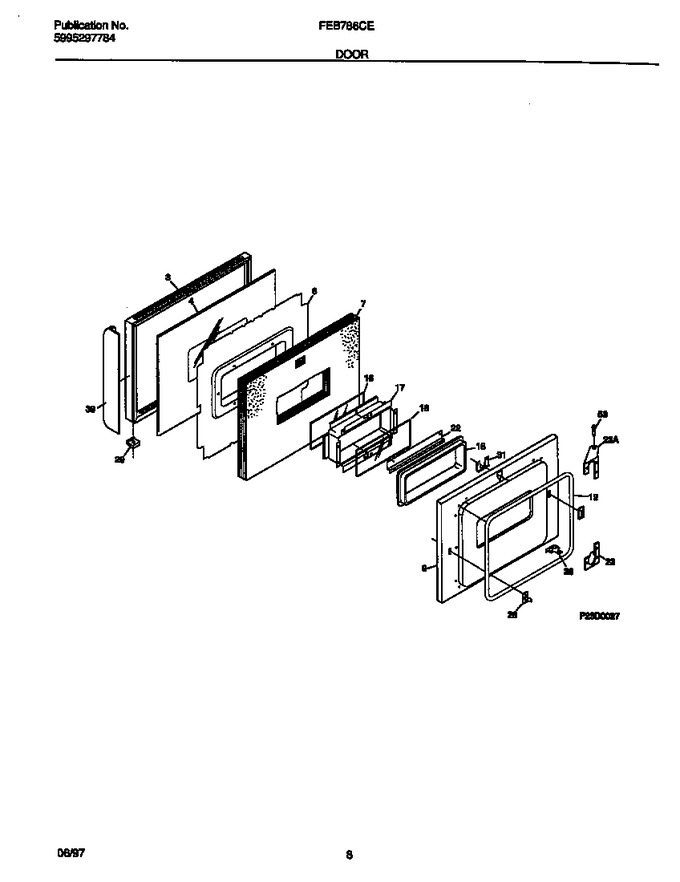

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026122		Trim-oven Door, Black		Appelez-nous	-
4	318051605		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318073503		Shield-wool		Appelez-nous	-
7	5303311214		Insulation, Oven Back/door		Appelez-nous	-
9	318048502		Liner-oven Door		Appelez-nous	-
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	318074700		Hinge-oven Door, Black, Upper		Appelez-nous	-
23	318074701		Hinge-oven Door, Black, Lower		Appelez-nous	-
28	318090210		Strike-door				$ 87.99
29	318113800		Spacer-door				$ 9.27
31	318065100		Latch-door		Appelez-nous	-
38	318074800		Stop-door, Black		Appelez-nous	-
39	318039900		Handle-door, Black, Oven				$ 208.33
53	318074901		Pin-hinge		Appelez-nous	-
*56459	318090101		Bushing-hinge		Appelez-nous	-
*56461	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*56462	5303300265		Screw, 8-18 X 1/2				$ 15.17
*56463	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*56464	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*56465	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*56466	5303320493		Cover-hinge Cutout				$ 6.93
*56467	5303321214		Washer, Lock		Appelez-nous	-
*56468	5303321221		Screw-handle, Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
