SELECT A DIAGRAM

01 - Cover

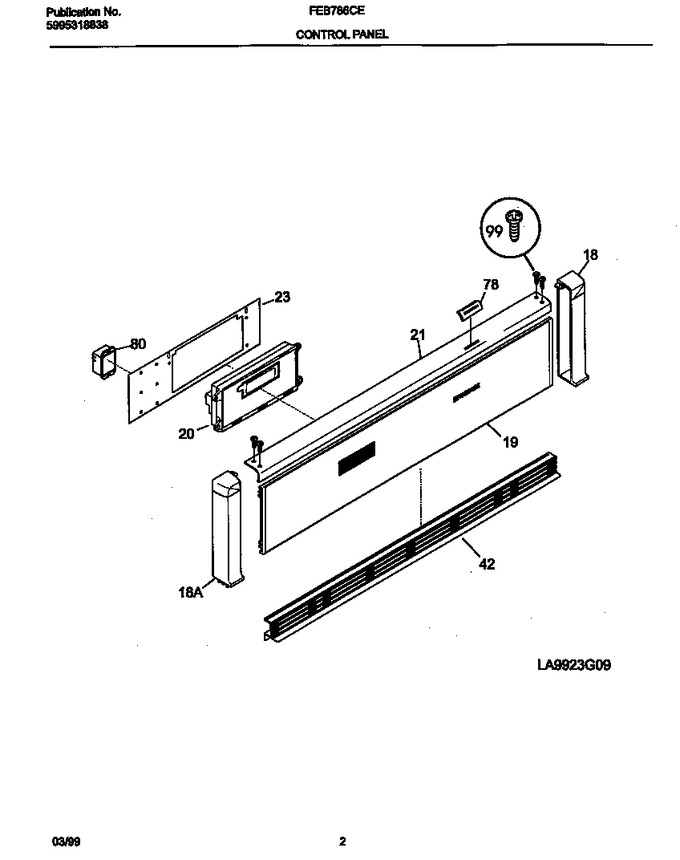

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	318030009		Panel-control, Black		Appelez-nous	-
20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
21	5303301310		Trim-canopy/shield, Black		Appelez-nous	-
23	318111602		Bracket-timer		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
78	5303302396		Cover, Oven Vent, Black		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303307406		Screw,6-32 X 3/8 ,black ,(2)				$ 11.29
*74920	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*74921	3201861		Screw, 6 X 3/8				$ 0.76

    View Diagram in Separate Window       Print Part List
