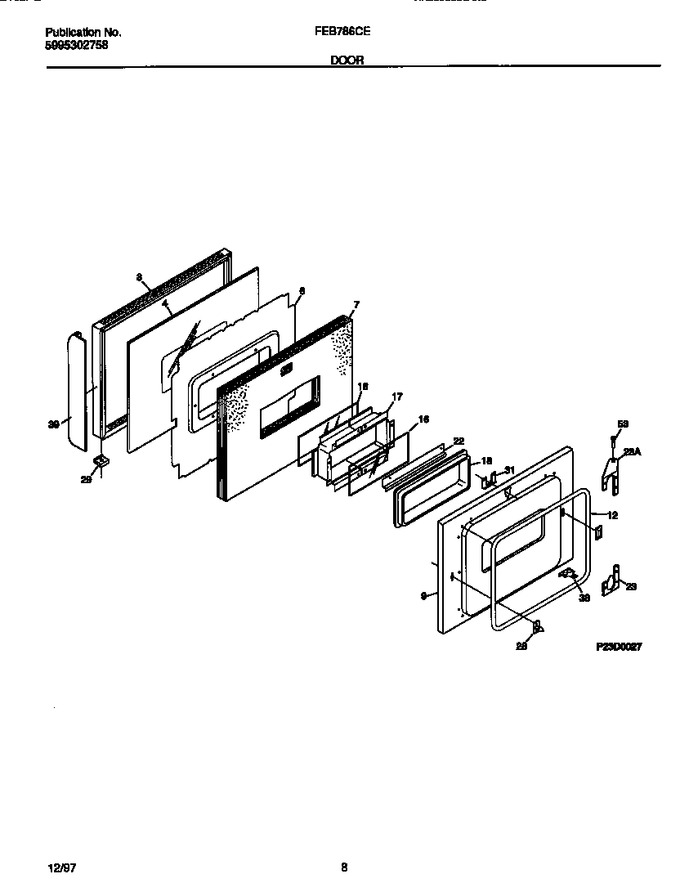

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026128		Trim-oven Door,white				$ 371.55
4	318051606		Glass-oven Door, White, Outer		Appelez-nous	-
6	318073503		Shield-wool		Appelez-nous	-
7	5303311214		Insulation, Oven Back/door		Appelez-nous	-
9	318048504		Liner-oven Door				$ 374.59
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	318074202		Hinge-oven Door,upper		Appelez-nous	-
23	318074203		Hinge-oven Door,lower		Appelez-nous	-
28	318090210		Strike-door				$ 87.99
29	318113800		Spacer-door				$ 9.27
31	318090310		Latch-door   (Replaces: 318090300)			Immediately	$ 44.61
38	318074801		Stop-door				$ 39.95
39	318039901		Handle-door, White, Oven				$ 245.96
53	318074913		Pin-hinge   (Replaces: 318074900)			Immediately	$ 46.07
*93290	318090110		Bushing-hinge		Appelez-nous	-
*93291	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*93292	5303300265		Screw, 8-18 X 1/2				$ 15.17
*93293	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*93294	5303321214		Washer, Lock		Appelez-nous	-
*93295	5303321221		Screw-handle, Black		Appelez-nous	-
*93296	5303320493		Cover-hinge Cutout				$ 6.93
