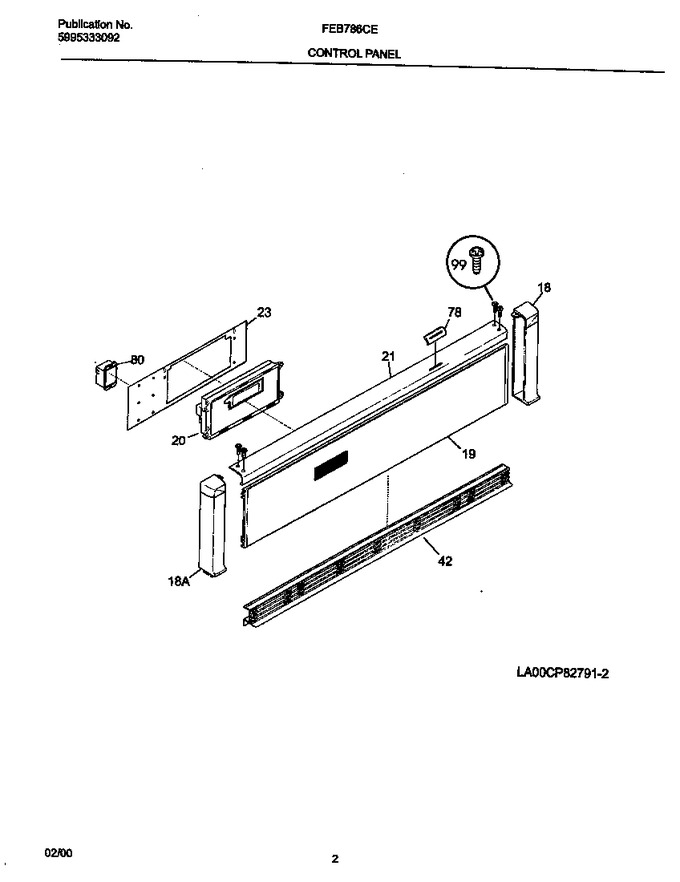

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311208		End Cap, White, Rh		Appelez-nous	-
18	5303311209		End Cap, White, Lh		Appelez-nous	-
19	318030010		Panel-control, White		Appelez-nous	-
20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
21	5303311212		Trim-canopy/shield, White				$ 238.98
23	318111602		Bracket-timer		Appelez-nous	-
42	5303302296		Trim-vent, White		Appelez-nous	-
78	5303302394		Cover, Oven Vent, White		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
*76840	3201861		Screw, 6 X 3/8				$ 0.76
*76841	08002868		Screw 10 X 24 X 1/2				$ 14.18
*76842	5303131766		Screw, Top Trim, 6-32 X 3/8				$ 10.87
*76843	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
