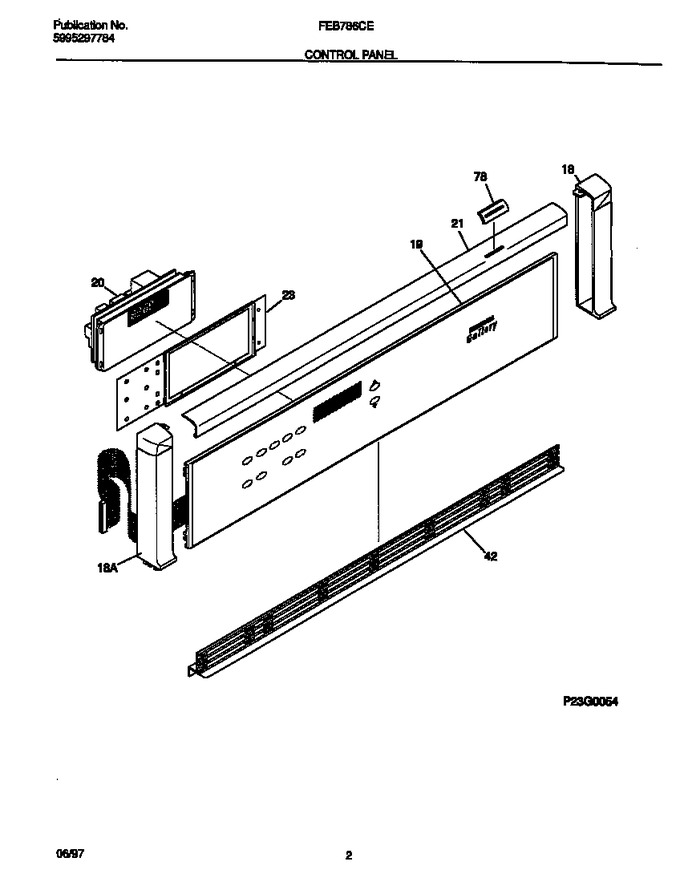

02 - Control Panel


03 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311225		End Cap, Almond, Rh		Appelez-nous	-
18	5303311226		End Cap, Almond, Lh		Appelez-nous	-
19	318030011		Panel-control, Almond		Appelez-nous	-
21	5303317307		Screw, Top Trim, 6-32 X 3/8, Almond, (2) (not Illustrate		Appelez-nous	-
21	5303311227		Trim-canopy/shield, Almond		Appelez-nous	-
42	5303318712		Trim-vent, Almond		Appelez-nous	-
78	5303302395		Cover, Oven Vent, Almond		Appelez-nous	-
*56440	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*56441	5303300265		Screw, 8-18 X 1/2				$ 15.17
*56442	5303311318		End Connector		Appelez-nous	-
20A	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
20B	318111500		Relay, Convection, Oven Light, (2) (not Illustrated)		Appelez-nous	-
23A	318111600		Bracket, Clock/relay		Appelez-nous	-
23B	5303288566		Screw-bracket, Clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
