SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body


04 - Door

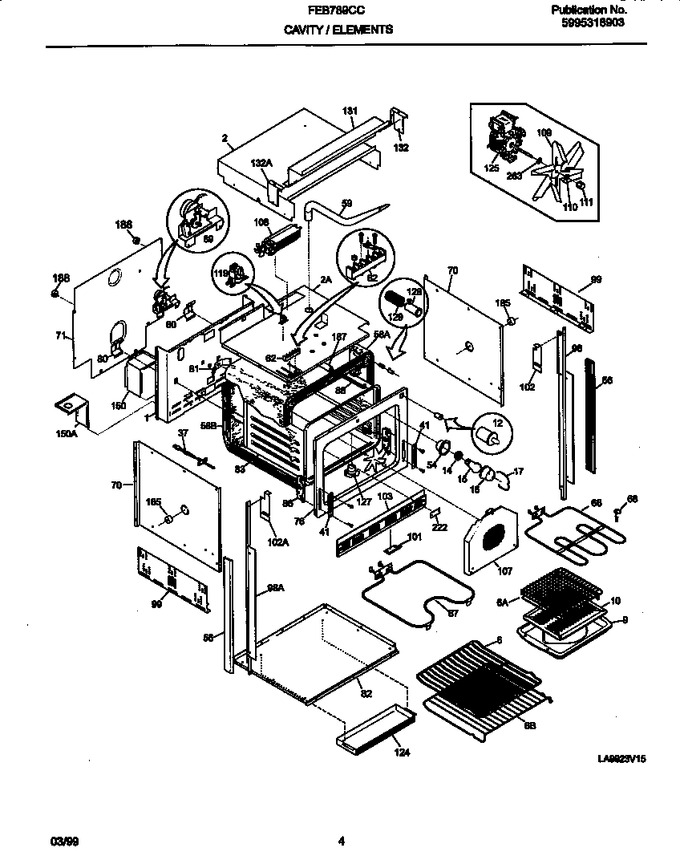

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066700		Back-main		Appelez-nous	-
2	318071500		Shield-oven Top		Appelez-nous	-
2	318102000		Shield-oven Top		Appelez-nous	-
6	5303299719		Rack-oven		Appelez-nous	-
6	5303311206		Rack, Broiler Pan		Appelez-nous	-
6	318025202		Shelf,oven		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer Lenz		Appelez-nous	-
37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	5303298951		Trim-bodyside, Black		Appelez-nous	-
58	5303311219		Insulation, Oven Top/back		Appelez-nous	-
58	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
59	318072510		Tube-oven Vent				$ 157.80
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	5303322963		Element-broil		Appelez-nous	-
67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
68	5304403015		Support-element				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
71	318071100		Shield-rear Wall		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303320846		Plate,oven Mtg				$ 51.50
82	318071800		Shield, Oven Bottom		Appelez-nous	-
83	318089519		Liner-oven Assy				$ 228.80
86	5303310524		Channel-hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
98	318029900		Trim-side, Inner, Rh		Appelez-nous	-
98	318029901		Trim-side, Inner, Lh		Appelez-nous	-
99	318055420		Support-adjustable				$ 44.73
101	318039511		Bracket-trim		Appelez-nous	-
103	318028800		Trim-base,under Counters ,black ,under Counters				$ 125.16
103	318028700		Trim-base, Black				$ 156.12
107	5303318711		Cover,fan		Appelez-nous	-
108	318073001		Motor-fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
119	318004900		Switch,thermal				$ 60.25
124	318076902		Box-vent		Appelez-nous	-
125	5303311202		Motor-convection				$ 114.07
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
131	318102202		Cover-control Housing		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
187	318013501		Tube, Rod-latch		Appelez-nous	-
188	08007817		Spacer, (2)		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
263	5303320346		Washer,conv. Motor		Appelez-nous	-
*10737	5303302745		Screw <10-16x-1-1/8>				$ 8.35
*10738	318078511		Box & Wires Assy		Appelez-nous	-
*10739	5304407813		Washer		Appelez-nous	-
*10740	5303308447		Screw, Switch-ovn Lght		Appelez-nous	-
*10741	5303323277		Screw (8-18x13/32)				$ 8.66
*10742	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
*10743	3201861		Screw, 6 X 3/8				$ 0.76
*10744	3201881		Lockwasher		Appelez-nous	-
*10745	08002868		Screw 10 X 24 X 1/2				$ 14.18
*10746	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*10747	5303308449		Fastener		Appelez-nous	-
*10748	5303308450		Screw, 8 X 3/8		Appelez-nous	-
102A	318070700		Cap, Top Panel, Rh				$ 26.20
102B	318070701		Cap, Top Panel, Lh				$ 31.55
111A	5303311205		Nut-fan Retainer		Appelez-nous	-
111B	5303322885		Spacer		Appelez-nous	-
132A	318101700		End-cover, Control Hsg, Rh		Appelez-nous	-
132B	318101701		End-cover, Control Hsg, Lh		Appelez-nous	-
150A	318072207		Bracket-support, Access Cover, Lh		Appelez-nous	-
150B	318072206		Bracket-support, Access Cover, Rh		Appelez-nous	-
89A	5304404899		Motor-latch		Appelez-nous	-
89B	318120702		Switch-latch				$ 111.67

    View Diagram in Separate Window       Print Part List
