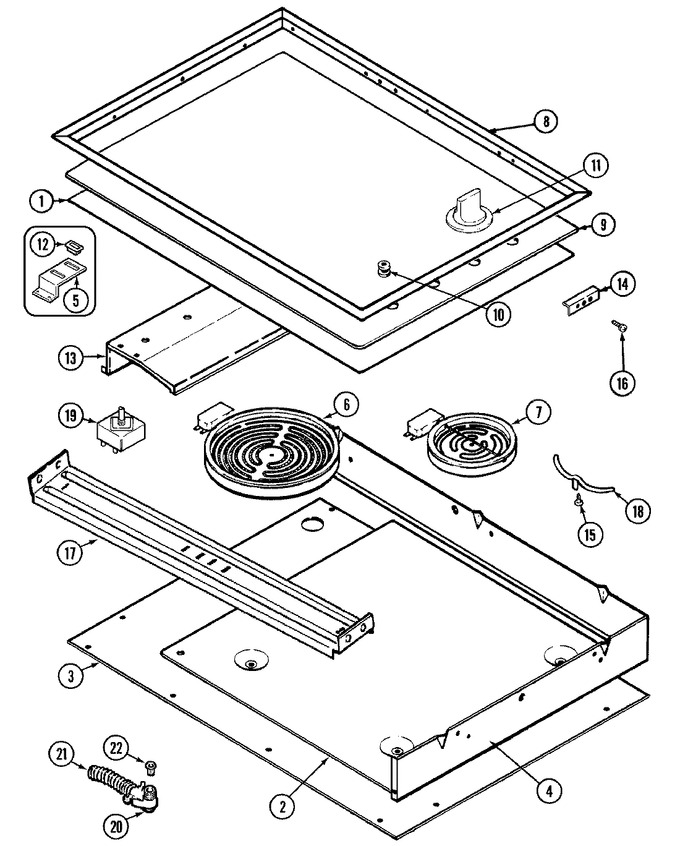

01 - Top Assembly
02 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F164-80 | Baffle, Ceramic Top | 01 |
|
- | ||||
| 2 | 3601F173-51 | Baffle, Heat----na | 01 |
|
- | ||||
| 3 | 8028P005-60 | Box, Breaker | 01 |
|
- | ||||
| 4 | 4016F023-45 | Bottom, Burner Box-sides | 01 |
|
- | ||||
| 4 | 74001430 | Sides, Burner Box | 12 |
|
- | ||||
| 5 | 3801F188-45 | Bracket, Light Indicator | 01 |
|
- | ||||
| 6 | 12500040 | Limiter Kit (8``) | 01 |
|
- | ||||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 01 |
|
Immediately | $ 316.13 | |||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 16 |
|
Immediately | $ 316.13 | |||
| 7 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 16 |
|
Immediately | $ 309.01 | |||
| 7 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 01 |
|
Immediately | $ 309.01 | |||
| 7 | 12500041 | Limiter Kit (6``) | 01 |
|
- | ||||
| 8 | 7746P029-60 | Frame, Main Top | 01 |
|
- | ||||
| 9 | 7719P068-60 | Nameplate, Magic Chef (wht) | 01 |
|
- | ||||
| 9 | 7918P070-60 | Top, Main (glass-wht) | 01 |
|
- | ||||
| 10 | 8008P033-60 | Grommet | 01 |
|
- | ||||
| 11 | 7737P029-60 | Knob, Switch | 01 |
|
$ 18.07 | ||||
| 12 | 74001241 | Light, Indicator (3 Term) | 01 |
|
- | ||||
| 13 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 01 |
|
$ 12.06 | ||||
| 13 | 3605F175-45 | Plate, Switch Mtg | 01 |
|
- | ||||
| 13 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 14 | 3804F092-45 | Retainer, Main Top Glass | 01 |
|
- | ||||
| 14 | 74001497 | Spacer, Rubber | 01 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 01 |
|
Immediately | $ 6.85 | |||
| 17 | 74001513 | Support, Ceramic Element | 01 |
|
- | ||||
| 18 | 8004P015-60 | Support, Element | 01 |
|
- | ||||
| 19 | 7403P320-60 | Switch, Infinite (8``) | 01 |
|
- | ||||
| 19 | 7403P322-60 | Switch, Infinite (6``) | 01 |
|
- | ||||
| 19 | 7212P030-60 | Seal, Gasket Inf. Sw. | 01 |
|
- | ||||
| 19 | 4870F006-60 | +tape, Silicone 1 In. By 102 I | 01 |
|
$ 37.74 | ||||
| 20 | 7417P004-60 | Connector, Right Ang | 01 |
|
- | ||||
| 21 | 3414F035-44 | Tubing, Conduit (flexible) | 01 |
|
- | ||||
| 22 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 01 |
|
Immediately | $ 4.86 | |||
| 22 | 8018P001-60 | Sleeve, Tube | 01 |
|
- | ||||
| 22 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 01 |
|
Immediately | $ 9.95 | |||
| 22 | 3801F072-45 | Bracket, Conduit | 01 |
|
- |
